ZM-UCP211D1

ZM-UCP211D1 X AS3S

Модель подшипника

C_r	43.5	kN	Basic dynamic load rating
C_0r	29.2	kN	Basic static load rating

Bearing	UC211D1		Bearing
Housing	P211D1		Housing

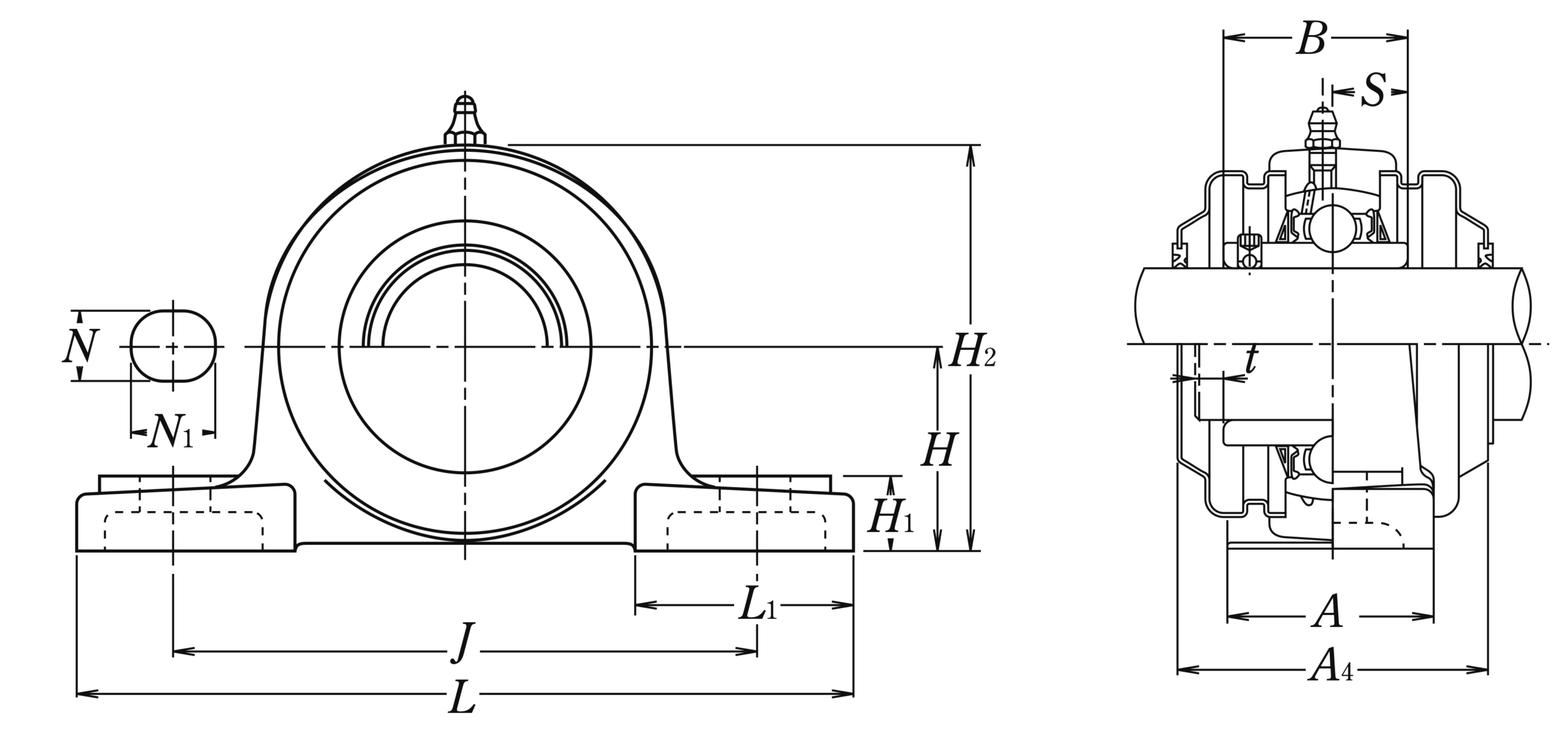

d	55	mm	Bore diameter
N1	23	mm	Length of attachment bolt hole
L	219	mm	Overall length
H	63.5	mm	Height of spherical seat centre
J	171	mm	Distance between attachment bolts
N	20	mm	Diameter of attachment bolt hole
A	60	mm	Base width
A4	77	mm	Width including end cover
H1	23	mm	Distance between bottoms of piloting grooves
B	55.6	mm	Width of inner ring
S	22.2	mm	Distance from Opposite side face of locking device to raceway centre
L1	65	mm	Foot width
H2	126	mm	Overall height

M16

Bolt size

mass

3.6

Mass approx.
