UKS306
Информация о продукте
Модель подшипника
UKS306 X AS3S
Базовые нагрузки
| Cr | 26.7 | kN | Basic dynamic load rating |
| C0r | 15 | kN | Basic static load rating |
Другие
Included products
| Bearing | UKS306 | Bearing |
Associated products
| Adapter sleeve | H2306X | Adapter sleeve |

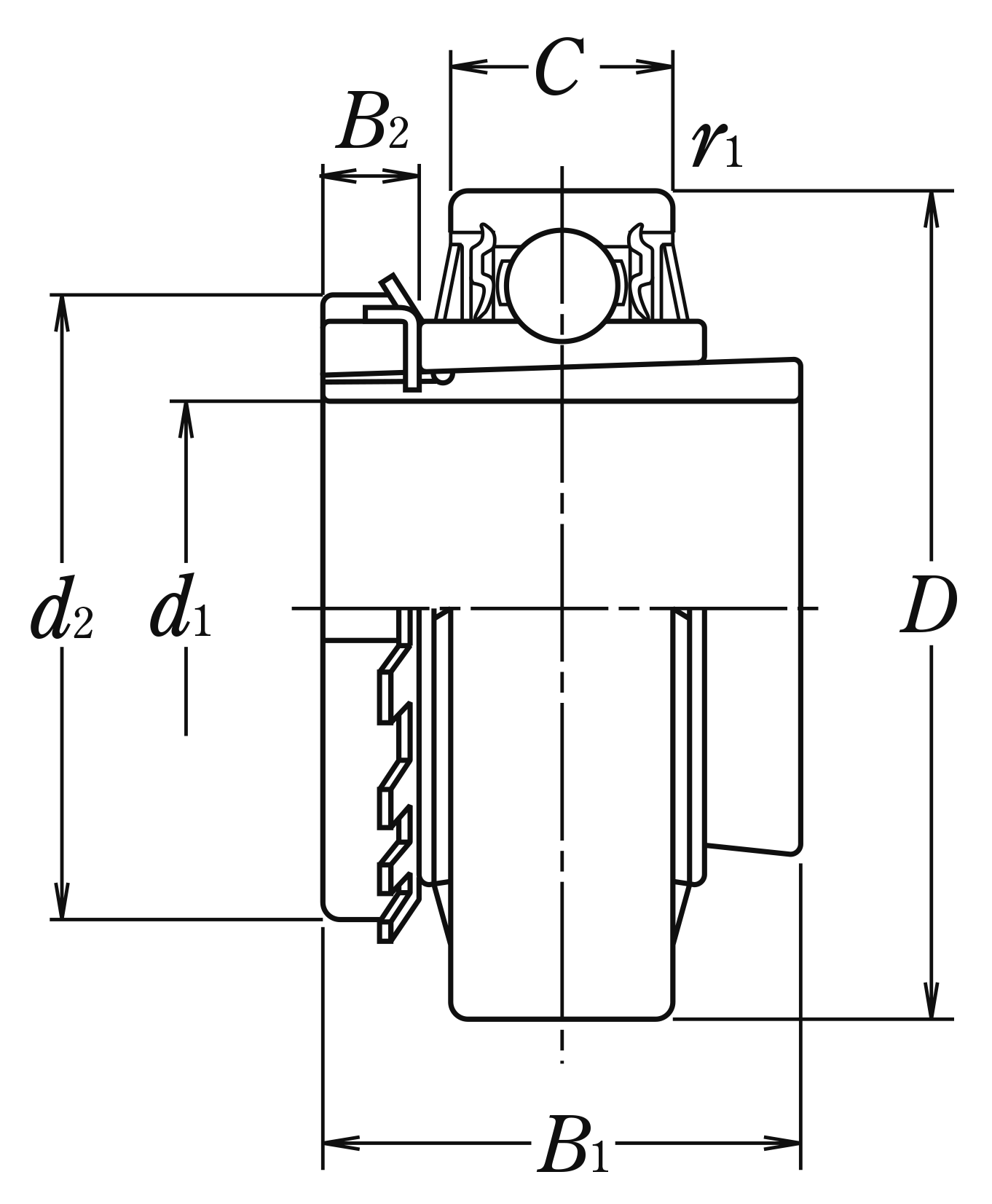

Nominal Dimensions
| d | 30 | mm | Bore diameter |
| D | 72 | mm | Outside diameter |
| B1 | 38 | mm | Overall bearing width |
| d1 | 25 | mm | Sleeve bore diameter |
| d2 | 45 | mm | Outside diameter lock nut |
| B,B4 | 29 | mm | Width of inner ring |
| B2 | 8 | mm | Width lock nut including lock washer |
| C | 23 | mm | Outer ring width |
| r(min.) | 1 | mm | Chamfer dimension |
| d4 | 44.9 | mm | Outside diameter of inner ring |
Масса
| Mass approx. | 0.61 | kg | Mass approx. |
