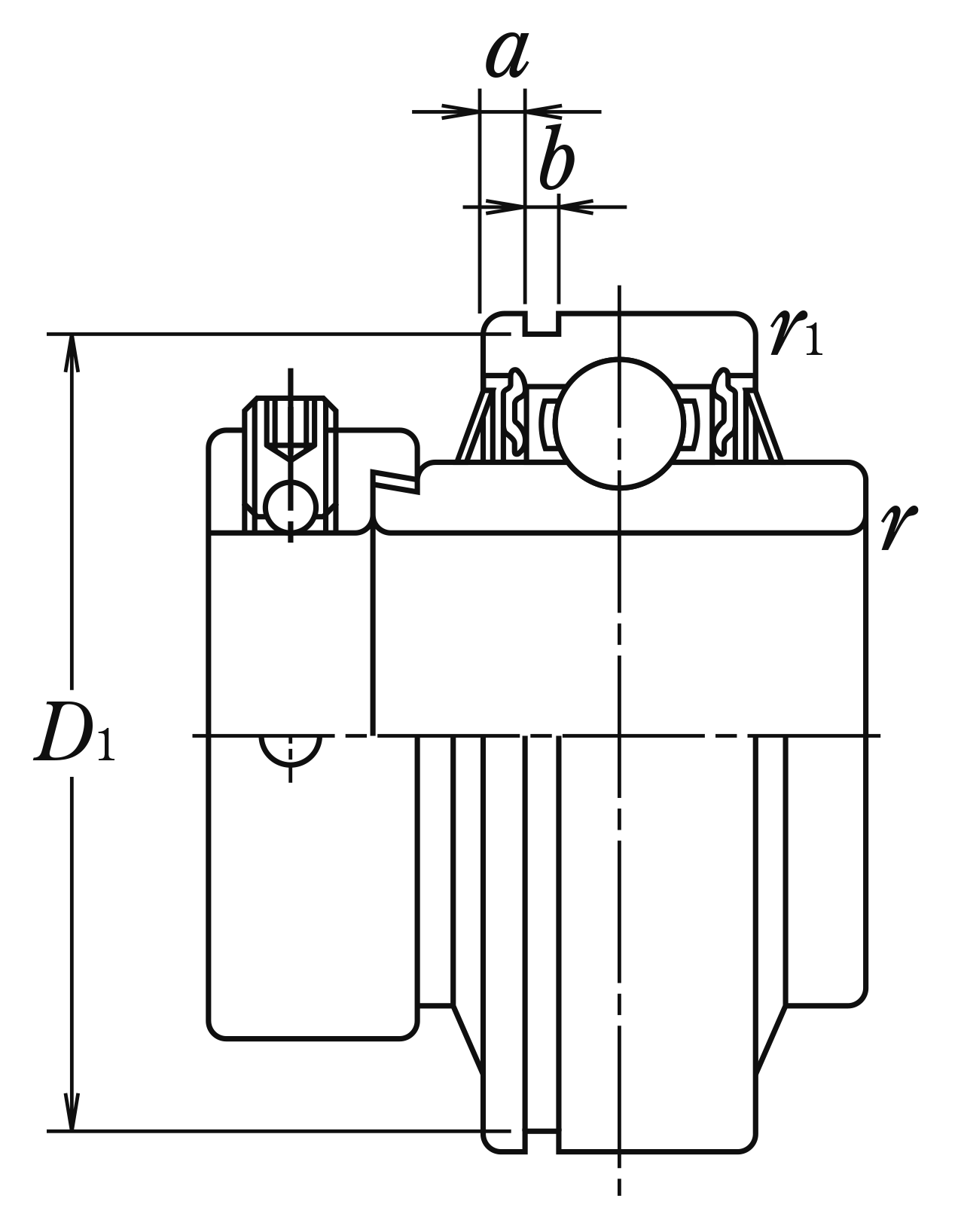

| d |
25 |
mm |
Bore diameter |
| D |
52 |
mm |
Outside diameter |
| B1 |
44.4 |
mm |
Overall bearing width |
| B,B4 |
34.9 |
mm |
Width of inner ring |
| C |
17 |
mm |
Outer ring width |
| r(min.) |
1 |
mm |
Chamfer dimension |
| r1(min.) |
0.6 |
mm |
Chamfer dimension |
| S1 |
26.95 |
mm |
Distance from locking device side face to raceway centre |
| G |
4.8 |
mm |
Distance face to thread centre |
| ds |
M 6×0.75 |
|
Set screw |
| d3 |
38 |
mm |
Outside diameter of locking collar |
| D1 |
49.73 |
mm |
Diameter of snap ring groove |
| B5 |
13.5 |
mm |
Width of locking collar |
| a |
3.2 |
mm |
Distance outer ring from side face to snap ring groove |
| b |
1.5 |
mm |
Width of snap ring groove |
