UELFU207D1
Информация о продукте
Модель подшипника
UELFU207D1 X AS3S
Базовые нагрузки
| Cr | 25.7 | kN | Basic dynamic load rating |
| C0r | 15.3 | kN | Basic static load rating |
Другие
Included products
| Bearing | UEL207D1 | Bearing | |
| Housing | FU207D1 | Housing |

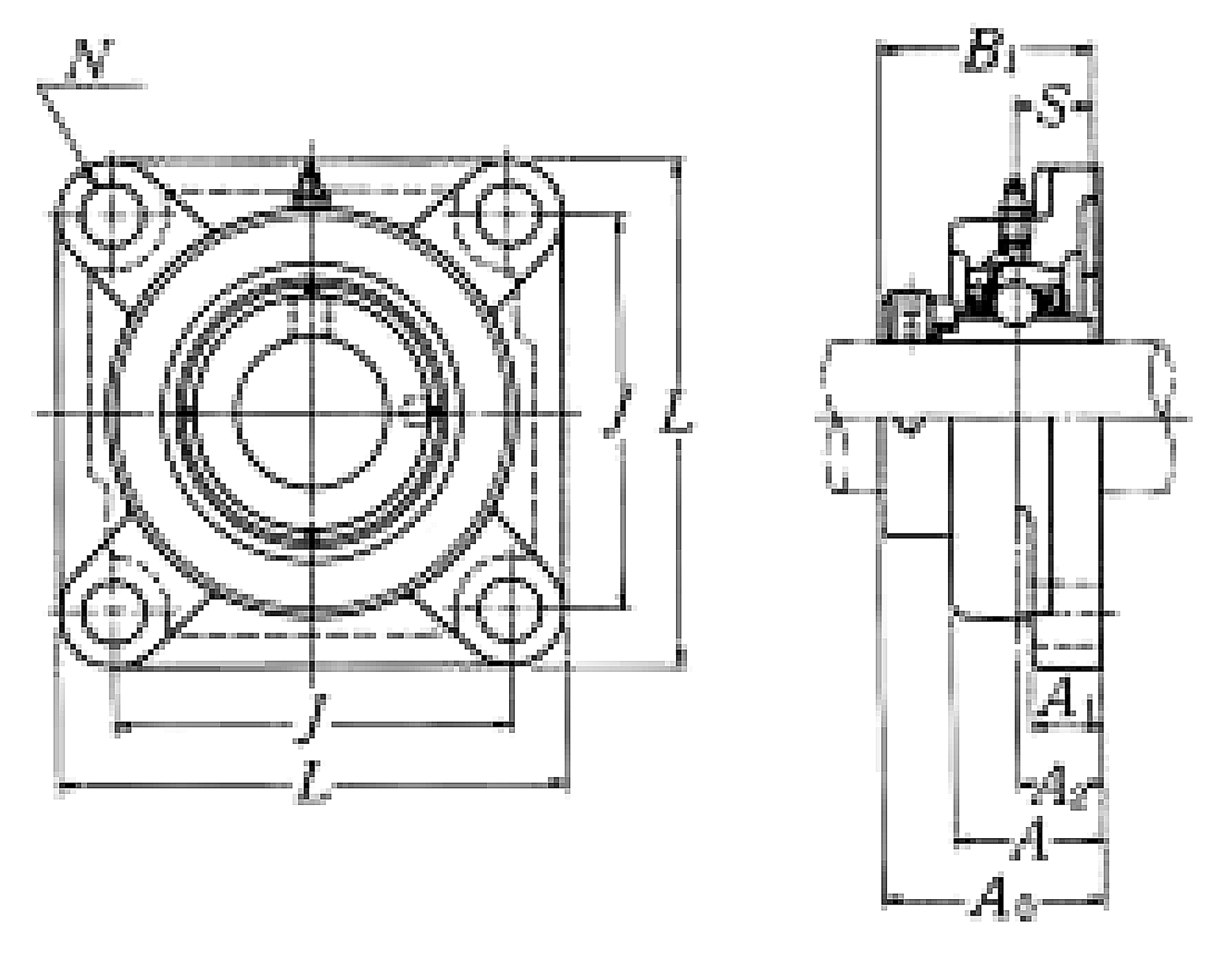

Nominal Dimensions
| d | 35 | mm | Bore diameter |
| L | 118 | mm | Overall length |
| J | 92 | mm | Distance between attachment bolts |
| N | 14 | mm | Diameter of attachment bolt hole |
| A2 | 21 | mm | Flange width |
| A1 | 17 | mm | Flange width |
| A | 36 | mm | Base width |
| A0 | 53.3 | mm | Overall width |
| B,B1,B2 | 51.1 | mm | Width of inner ring |
| S | 18.8 | mm | Distance from Opposite side face of locking device to raceway centre |
Mounting information
| G | M12 | Bolt size |
Масса
| mass | 1.7 | kg | Mass approx. |
