UCUP205D1

UCUP205D1 X AS3S

Модель подшипника

C_r	14	kN	Basic dynamic load rating
C_0r	7.85	kN	Basic static load rating

Bearing	UC205D1		Bearing
Housing	UP205D1		Housing

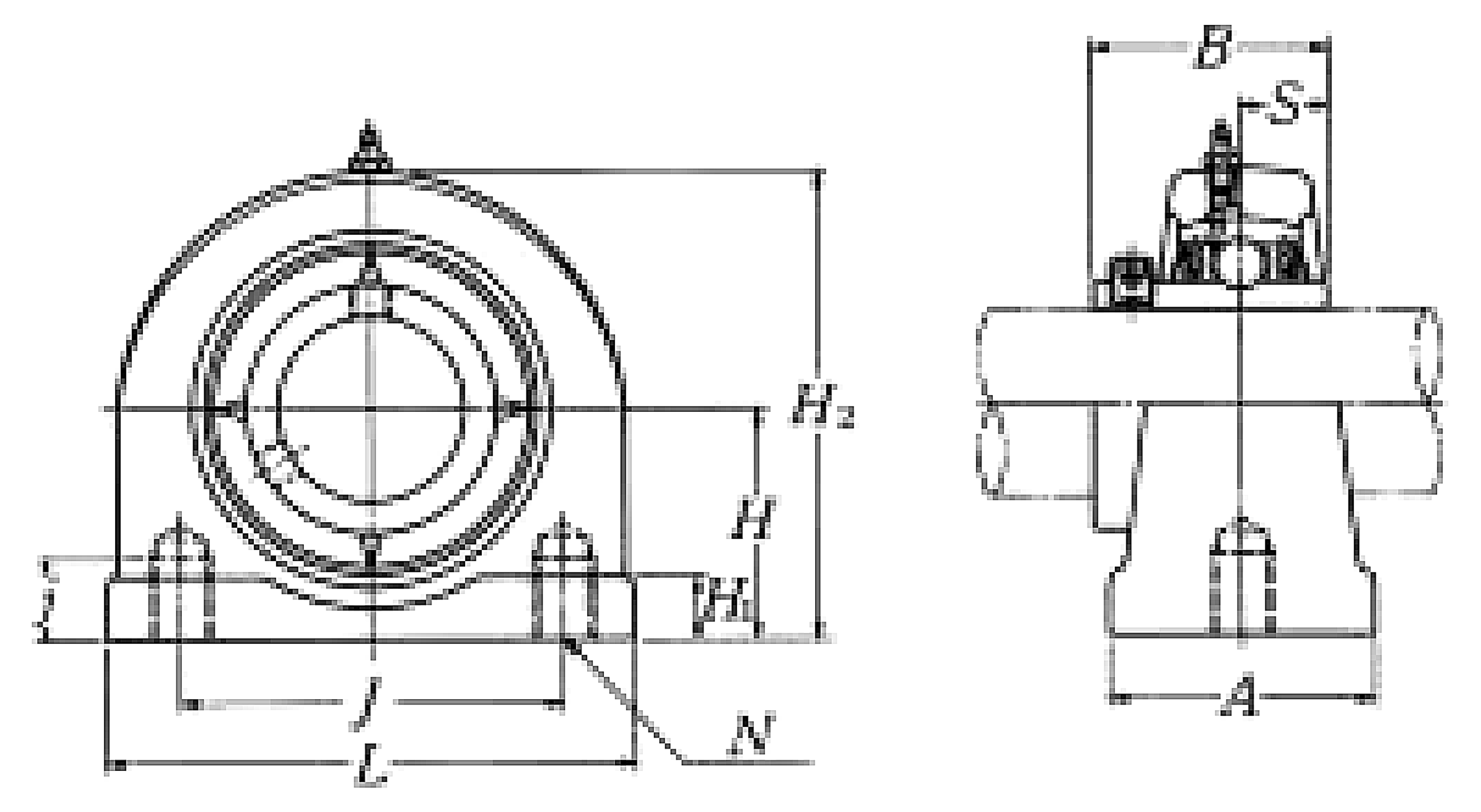

d	25	mm	Bore diameter
L	84	mm	Overall length
H	36.5	mm	Height of spherical seat centre
J	56	mm	Distance between attachment bolts
A	38	mm	Base width
H1	12	mm	Distance between bottoms of piloting grooves
B	34.1	mm	Width of inner ring
S	14.3	mm	Distance from Opposite side face of locking device to raceway centre
j	15	mm	Thread length
H2	72	mm	Overall height

M10×1.5

Set screw

mass

0.7

Mass approx.
