UCPG306D1
Информация о продукте
Модель подшипника
UCPG306D1 X AS3S
Базовые нагрузки
| Cr | 26.7 | kN | Basic dynamic load rating |
| C0r | 15 | kN | Basic static load rating |
Другие
Included products
| Bearing | UC306D1 | Bearing | |
| Housing | PG306D1 | Housing |

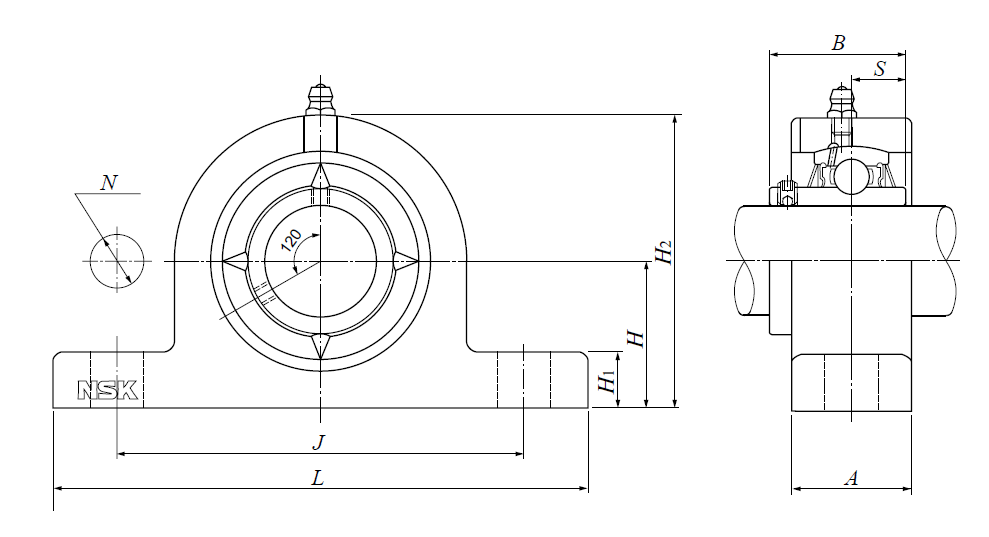

Nominal Dimensions
| d | 30 | mm | Bore diameter |
| L | 180 | mm | Overall length |
| H | 50 | mm | Height of spherical seat centre |
| J | 140 | mm | Distance between attachment bolts |
| N | 17 | mm | Diameter of attachment bolt hole |
| A | 35 | mm | Base width |
| H1 | 18 | mm | Distance between bottoms of piloting grooves |
| B | 43 | mm | Width of inner ring |
| S | 17 | mm | Distance from Opposite side face of locking device to raceway centre |
| H2 | 95 | mm | Overall height |
Mounting information
| G | M14 | Bolt size |
Масса
| mass | 1.8 | kg | Mass approx. |
