UCHP202D1
Информация о продукте
Модель подшипника
UCHP202D1 X AS3S
Базовые нагрузки
| Cr | 12.8 | kN | Basic dynamic load rating |
| C0r | 6.65 | kN | Basic static load rating |
Другие
Included products
| Bearing | UC202D1 | Bearing | |
| Housing | HP204D1 | Housing |

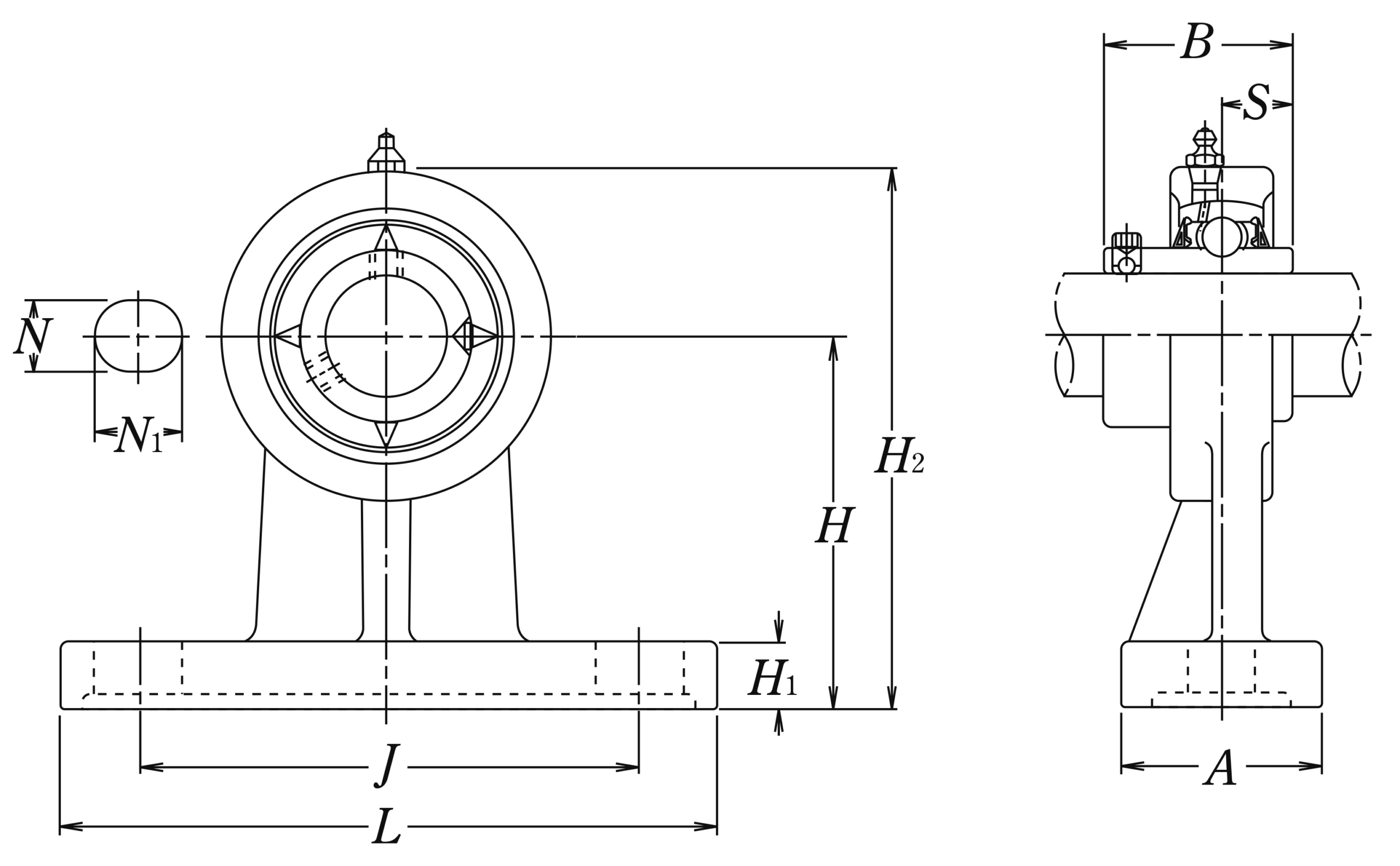

Nominal Dimensions
| d | 15 | mm | Bore diameter |
| N1 | 19 | mm | Length of attachment bolt hole |
| L | 127 | mm | Overall length |
| H | 70 | mm | Height of spherical seat centre |
| J | 95 | mm | Distance between attachment bolts |
| N | 13 | mm | Diameter of attachment bolt hole |
| A | 40 | mm | Base width |
| H1 | 13 | mm | Distance between bottoms of piloting grooves |
| B | 31 | mm | Width of inner ring |
| S | 12.7 | mm | Distance from Opposite side face of locking device to raceway centre |
| H2 | 101 | mm | Overall height |
Mounting information
| G | M10 | Bolt size |
Масса
| mass | 0.9 | kg | Mass approx. |
