UCFS322D1
Информация о продукте
Модель подшипника
UCFS322D1 X AS3S
Базовые нагрузки
| Cr | 205 | kN | Basic dynamic load rating |
| C0r | 179 | kN | Basic static load rating |
Другие
Included products
| Bearing | UC322D1 | Bearing | |
| Housing | FS322D1 | Housing |

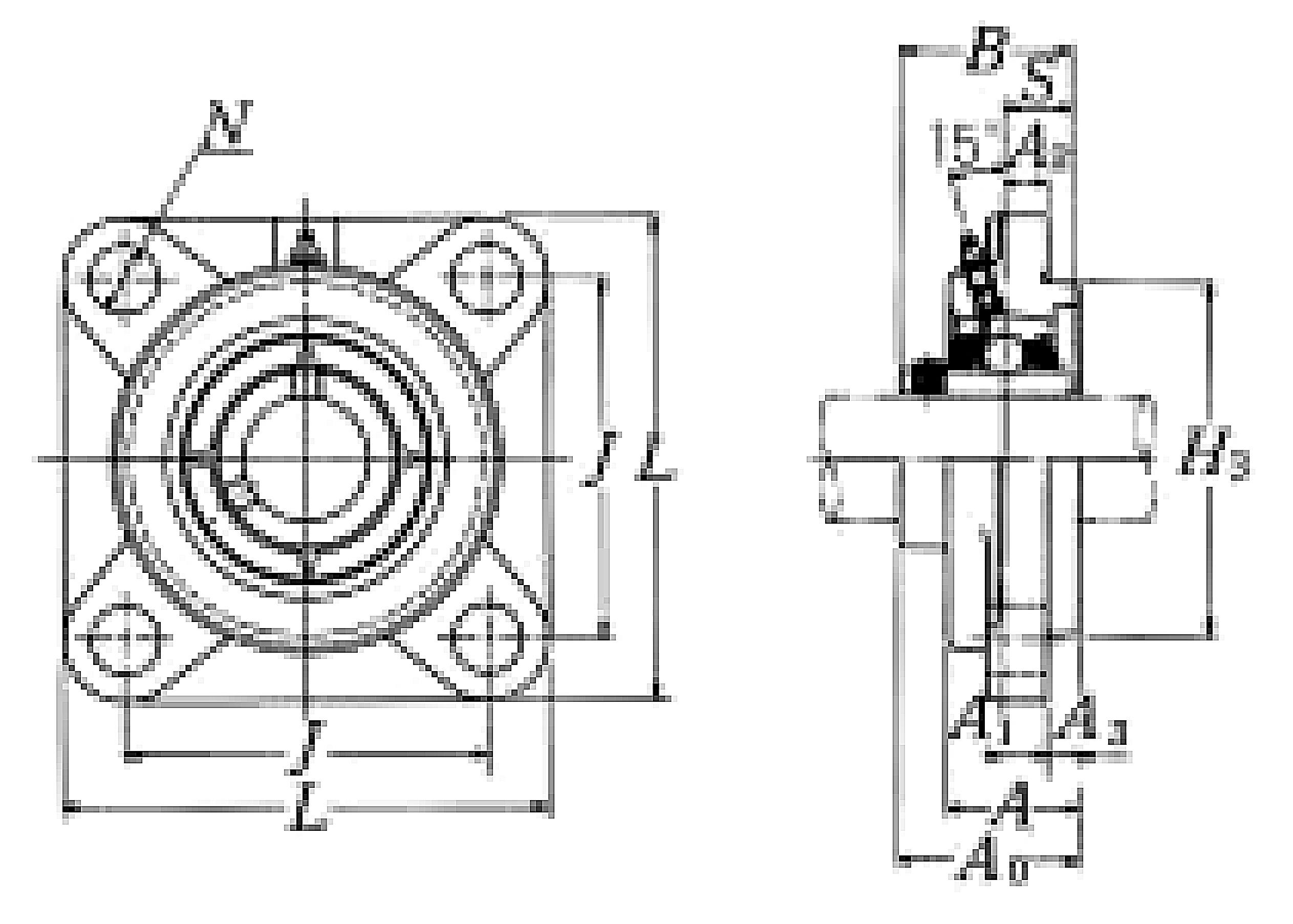

Nominal Dimensions
| d | 110 | mm | Bore diameter |
| L | 340 | mm | Overall length |
| H3 | 300 | mm | Outer diameter of Spigot Joint |
| J | 266 | mm | Distance between attachment bolts |
| A3 | 25 | mm | Height of of Spigot Joint |
| A2 | 35 | mm | Flange width |
| A1 | 35 | mm | Flange width |
| A | 96 | mm | Base width |
| A0 | 131 | mm | Overall width |
| B,B1,B2 | 117 | mm | Width of inner ring |
| S | 46 | mm | Distance from Opposite side face of locking device to raceway centre |
Mounting information
| G | M36 | Bolt size |
Масса
| mass | 38 | kg | Mass approx. |
