UCFC215D1

UCFC215D1 X AS3S

Модель подшипника

C_r	66	kN	Basic dynamic load rating
C_0r	49.5	kN	Basic static load rating

Bearing	UC215D1		Bearing
Housing	FC215D1		Housing

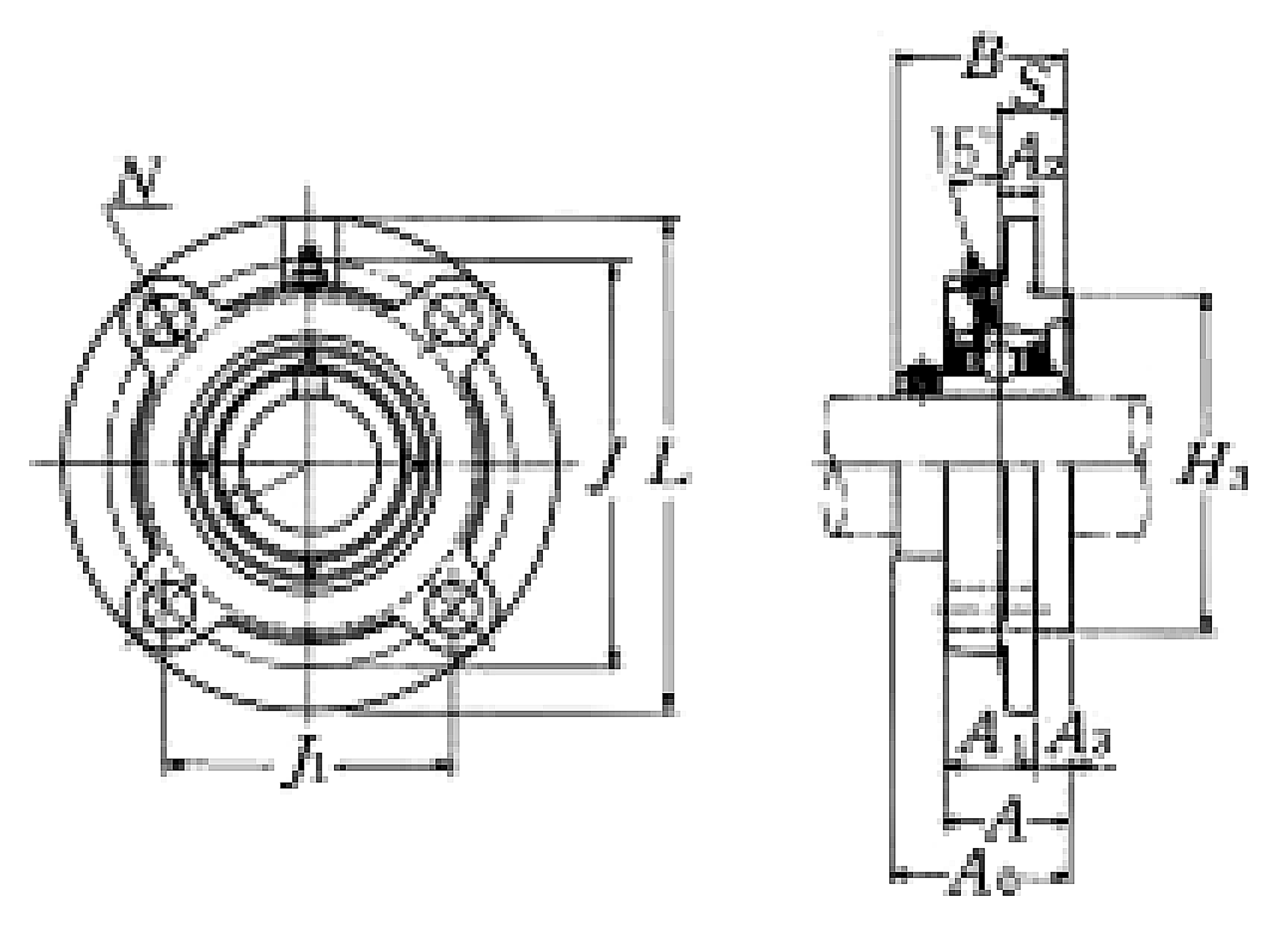

d	75	mm	Bore diameter
L,H	220	mm	Overall length
H3	160	mm	Outer diameter of Spigot Joint
J	184	mm	Pitch diameter of attachment bolts
J1	130.1	mm	Distance between attachment bolts
N	19	mm	Diameter of attachment bolt hole
A3	16	mm	Height of of Spigot Joint
A2	18	mm	Flange width
A1	40	mm	Flange width
A	56	mm	Base width
A0	78.5	mm	Overall width
B,B1,B2	77.8	mm	Width of inner ring
S	33.3	mm	Distance from Opposite side face of locking device to raceway centre

M16

Bolt size

mass

7.4

Mass approx.
