ITJ NU1032
Информация о продукте
Модель подшипника
NU1032

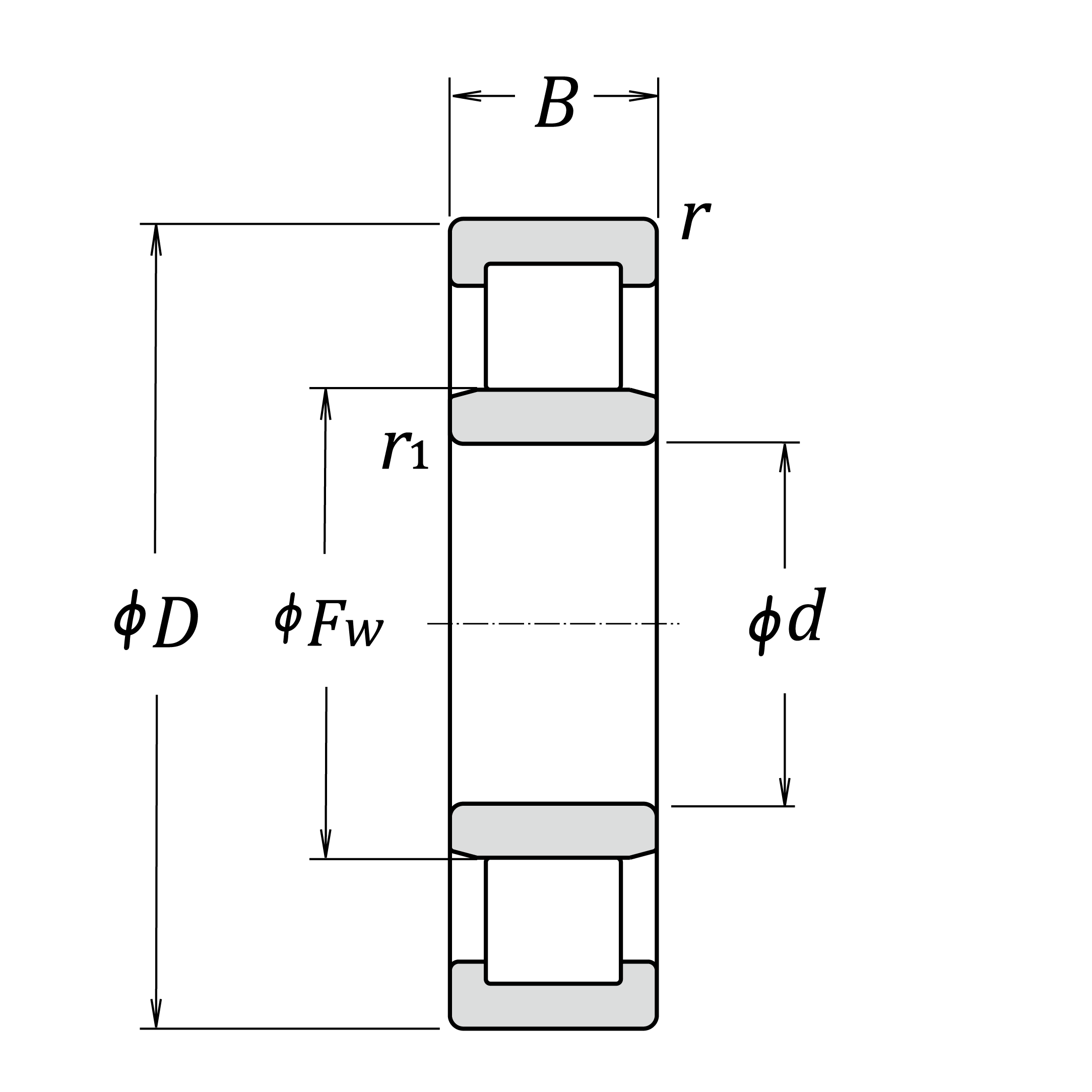

Габаритные размеры
| d | 160 | mm | Bore diameter |
| D | 240 | mm | Outside diameter |
| B | 38 | mm | Width |
| FW | 180 | mm | Raceway diameter of inner ring |
| r (min.) | 2.1 | mm | Chamfer dimension |
| r1 (min.) | 1.5 | mm | Chamfer dimension |
Базовые нагрузки
| Cr | 292000 | N | Basic dynamic load rating |
| C0r | 340000 | N | Basic static load rating |
Предельные скорости
| Thermal Speed Rating (Oil-bath) | 3400 | min-1 | Oil-bath lubrication subject to conditions outlined in ISO 15312 |
| Grease | 2600 | min-1 | Grease lubrication |
| Oil (Oil-bath) | 3200 | min-1 | Oil-bath lubrication |

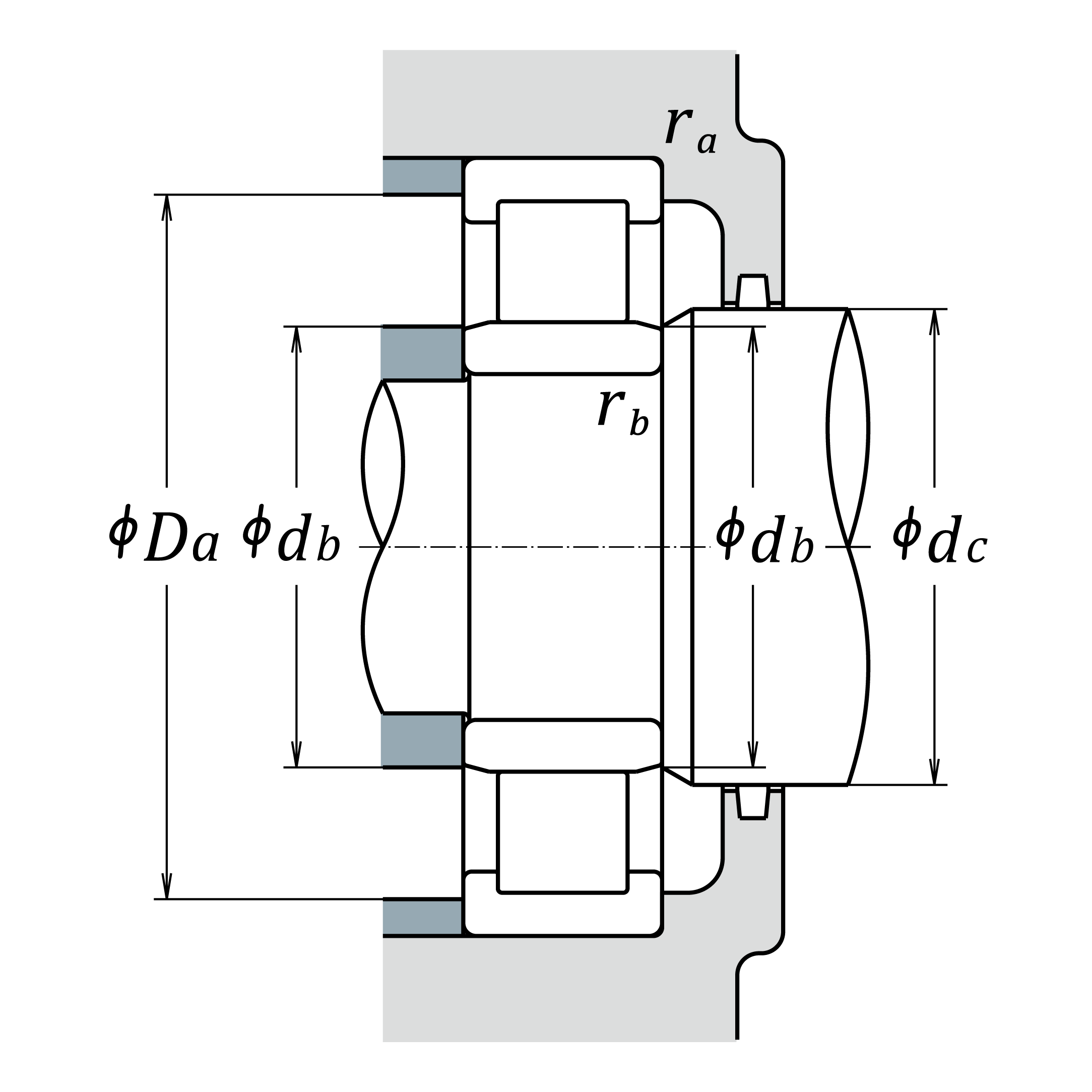

Размеры буртиков и галтелей
| db (min.) | 168 | mm | Diameter of shaft / spacer sleeve abutment |
| db (max.) | 178 | mm | Diameter of shaft / spacer sleeve abutment |
| dc (min.) | 184 | mm | Diameter of shaft abutment |
| Da (max.) | 229 | mm | Diameter of housing abutment |
| ra (max.) | 2 | mm | Radius of shaft or housing fillet |
| rb (max.) | 1.5 | mm | Radius of shaft or housing fillet |
Расчетные коэффициенты
Масса
| (approx.) | 5.82 | kg |
