ITJ HR32207C
Информация о продукте
Модель подшипника
HR32207C

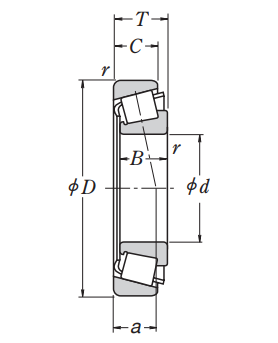

Габаритные размеры
| d | 35 | mm | Bore diameter |
| D | 72 | mm | Outside diameter |
| T | 24.25 | mm | Total width |
| B | 23 | mm | Width of inner ring |
| C | 18 | mm | Width of outer ring |
| Cup r (min.) | 1.5 | mm | Chamfer dimension of outer ring (Cup) |
| Cone r (min.) | 1.5 | mm | Chamfer dimension of inner ring (Cone) |
Базовые нагрузки
| Cr | 74500 | N | Basic dynamic load rating |
| C0r | 71500 | N | Basic static load rating |
Предельные скорости
| Grease | 5000 | min-1 | Grease lubrication |
| Oil (Oil-bath) | 7100 | min-1 | Oil-bath lubrication |

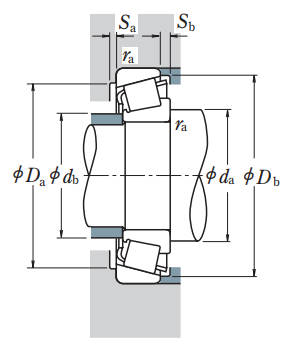

Размеры буртиков и галтелей
| da (min.) | 46 | mm | Diameter of shaft abutment |
| Db (min.) | 68.5 | mm | Diameter of housing abutment |
| Da (min.) | 58 | mm | Diameter of housing abutment |
| Da (max.) | 63 | mm | Diameter of housing abutment |
| Sa | 3 | mm | Minimum width of space required in housing on large side face |
| Sb | 6 | mm | Minimum width of space required in housing on small side face |
| db (max.) | 42 | mm | Diameter of shaft abutment |
| ra (max.) | 1.5 | mm | Radius of shaft or housing fillet of inner ring |
| ra (max.) | 1.5 | mm | Radius of shaft or housing fillet of outer ring |
Расчетные коэффициенты
Масса
| (approx.) | 0.442 | kg |
