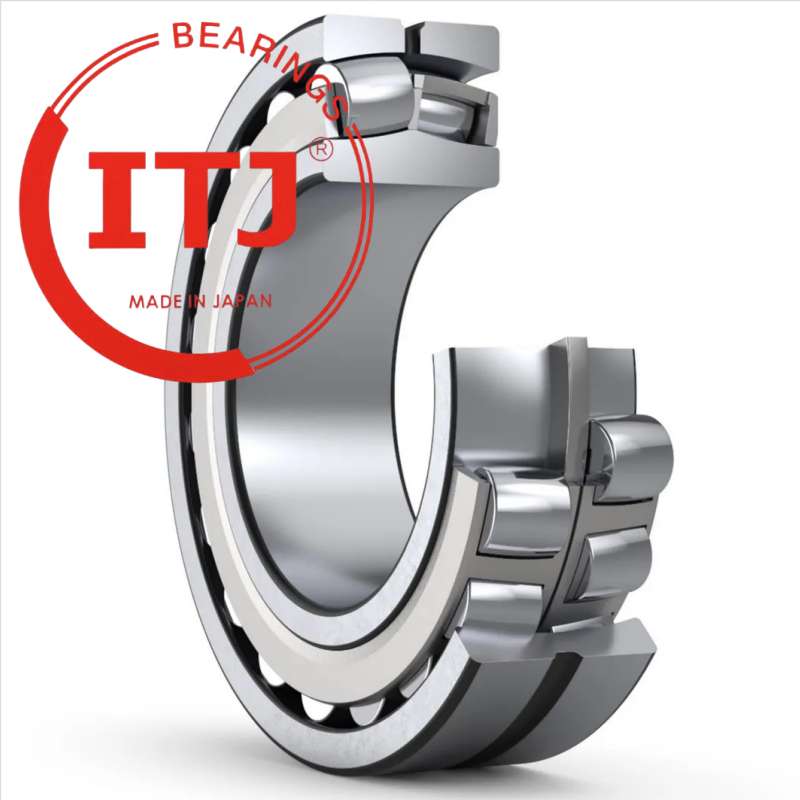

ITJ 23244CKE4
Информация о продукте
Модель подшипника
23244CKE4

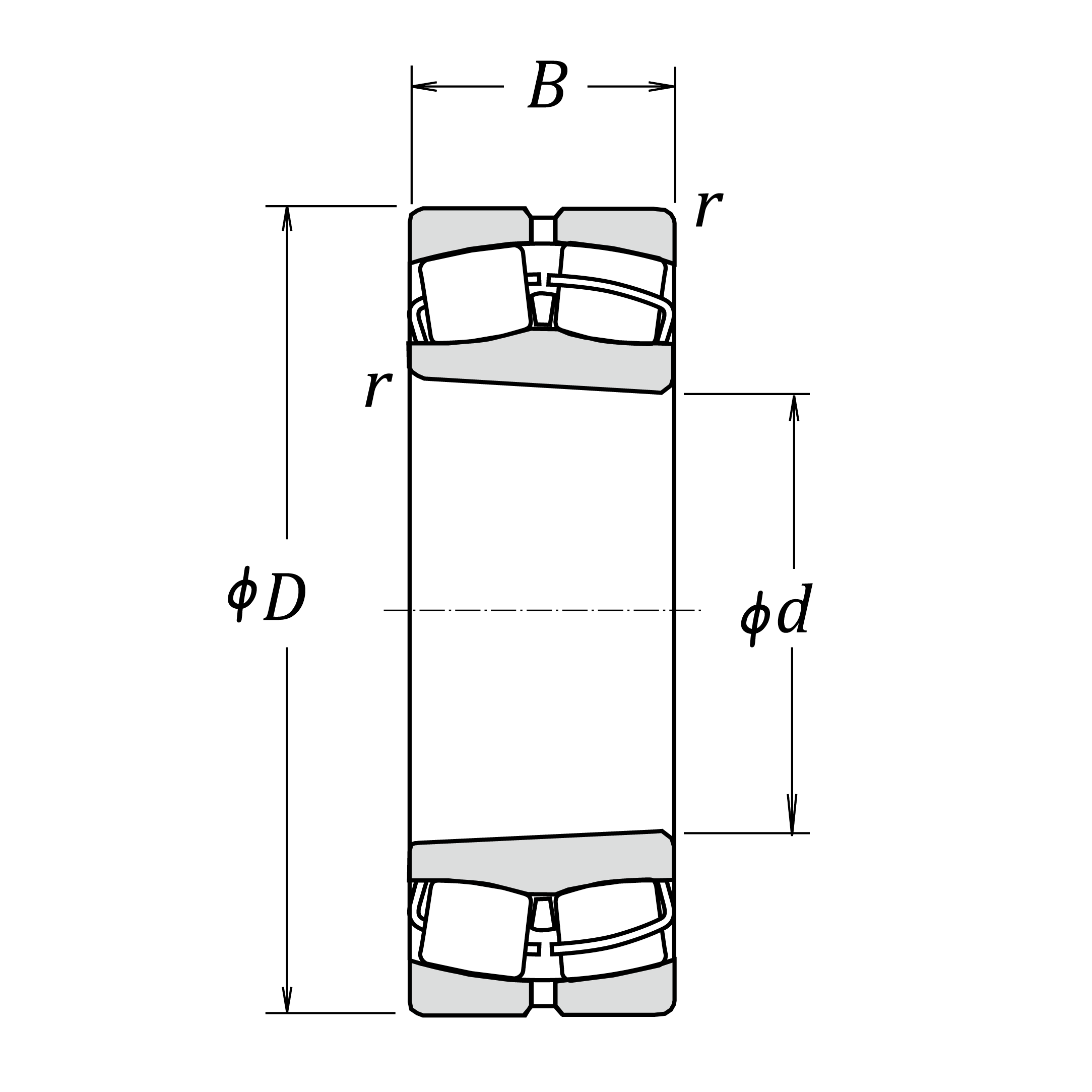

Габаритные размеры
| d | 220 | mm | Bore diameter |
| D | 400 | mm | Outside diameter |
| B | 144 | mm | Width |
| r (min.) | 4 | mm | Chamfer dimension |
Базовые нагрузки
| Cr | 2520000 | N | Basic dynamic load rating |
| C0r | 3400000 | N | Basic static load rating |
Предельные скорости
| Thermal Speed Rating (Oil-bath) | 1000 | min-1 | Oil-bath lubrication subject to conditions outlined in ISO 15312 |
| Mechanical (forced-circulation oil) | 1600 | min-1 | Properly designed and controlled forced-circulation oil lubrication |
| Grease | 670 | min-1 | Grease lubrication |
| Oil (Oil-bath) | 900 | min-1 | Oil-bath lubrication |

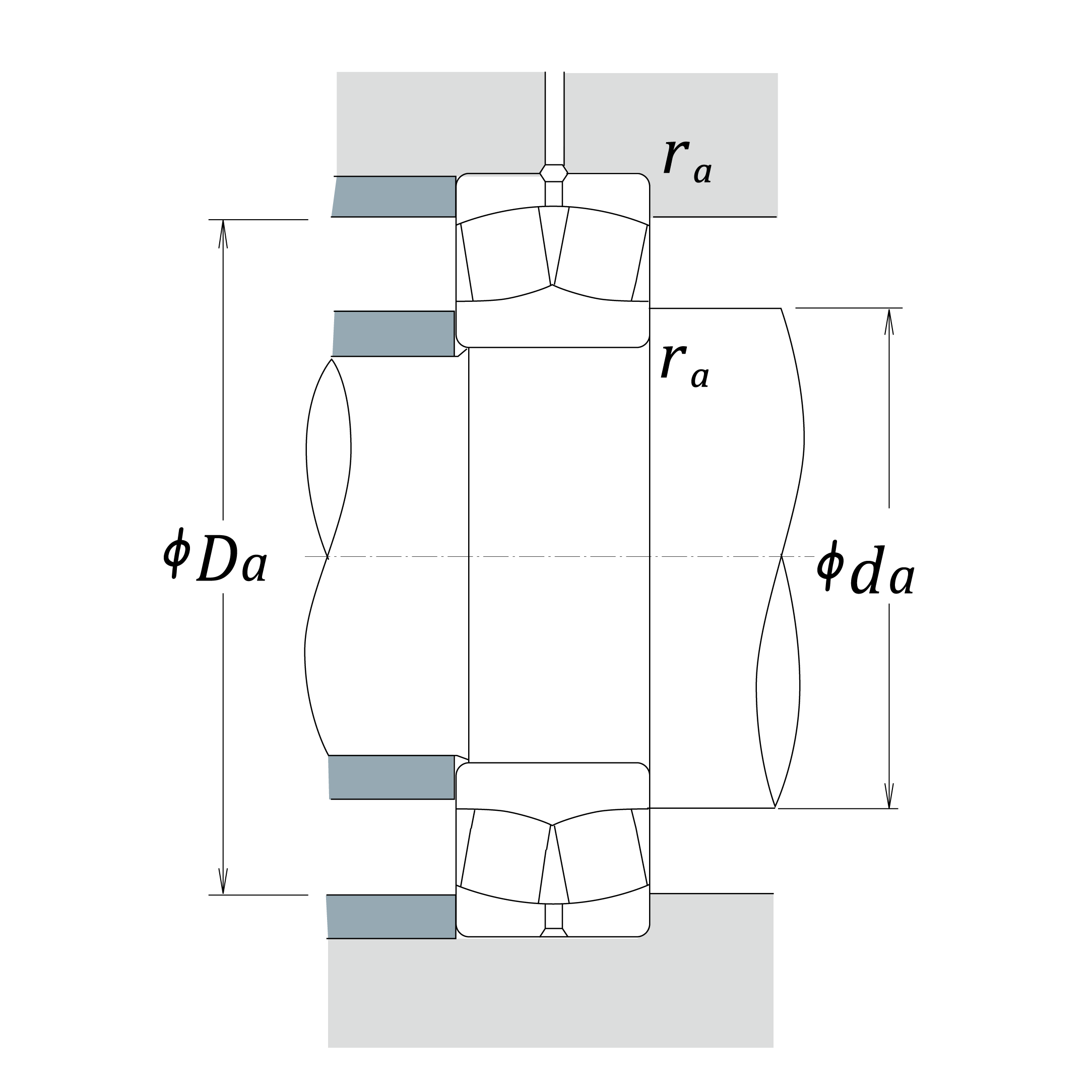

Размеры буртиков и галтелей
| da (min.) | 238 | mm | Diameter of shaft abutment |
| da (max.) | 260 | mm | Diameter of shaft abutment |
| Da (min.) | 337 | mm | Diameter of housing abutment |
| Da (max.) | 382 | mm | Diameter of housing abutment |
| ra (max.) | 3 | mm | Radius of shaft or housing fillet |
Расчетные коэффициенты
Масса
| (approx.) | 80.4 | kg |
