ITJ 22348CAMKE4
Информация о продукте
Модель подшипника
22348CAMKE4

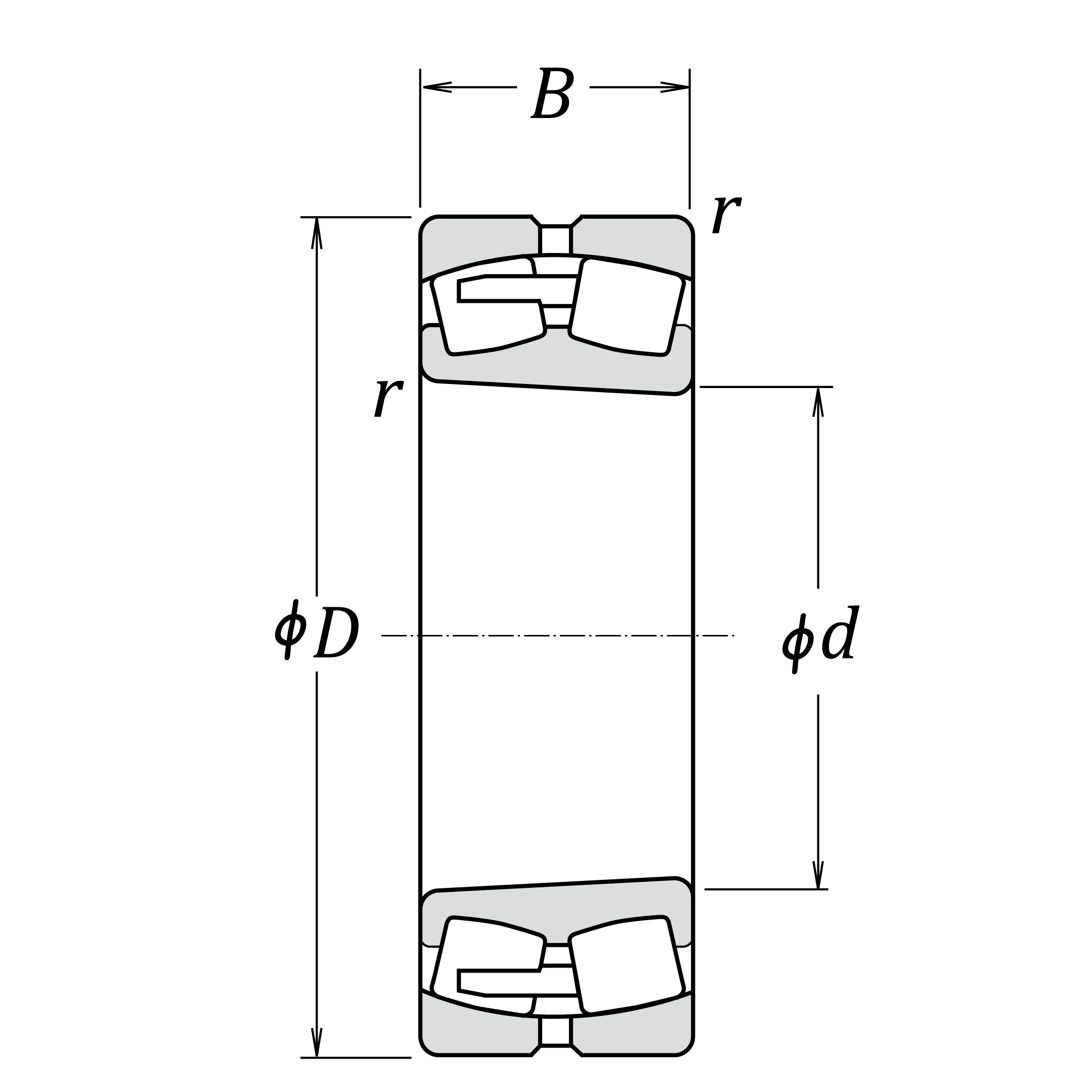

Габаритные размеры
| d | 240 | mm | Bore diameter |
| D | 500 | mm | Outside diameter |
| B | 155 | mm | Width |
| r (min.) | 5 | mm | Chamfer dimension |
Базовые нагрузки
| Cr | 3250000 | N | Basic dynamic load rating |
| C0r | 3800000 | N | Basic static load rating |
Предельные скорости
| Thermal Speed Rating (Oil-bath) | 850 | min-1 | Oil-bath lubrication subject to conditions outlined in ISO 15312 |
| Mechanical (forced-circulation oil) | 1500 | min-1 | Properly designed and controlled forced-circulation oil lubrication |
| Grease | 670 | min-1 | Grease lubrication |
| Oil (Oil-bath) | 850 | min-1 | Oil-bath lubrication |

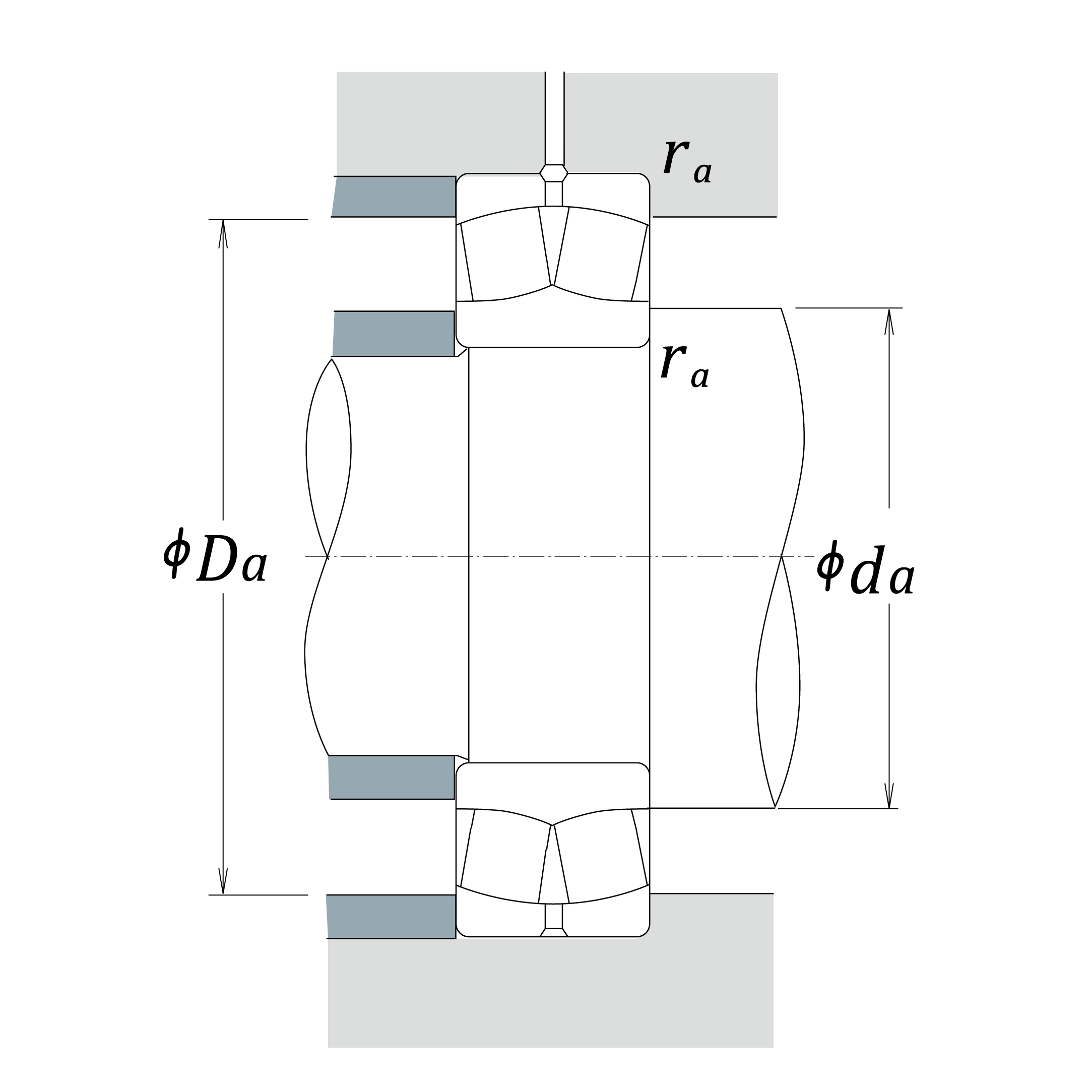

Размеры буртиков и галтелей
| da (min.) | 262 | mm | Diameter of shaft abutment |
| Da (min.) | 423 | mm | Diameter of housing abutment |
| Da (max.) | 478 | mm | Diameter of housing abutment |
| ra (max.) | 4 | mm | Radius of shaft or housing fillet |
Расчетные коэффициенты
Масса
| (approx.) | 147 | kg |
