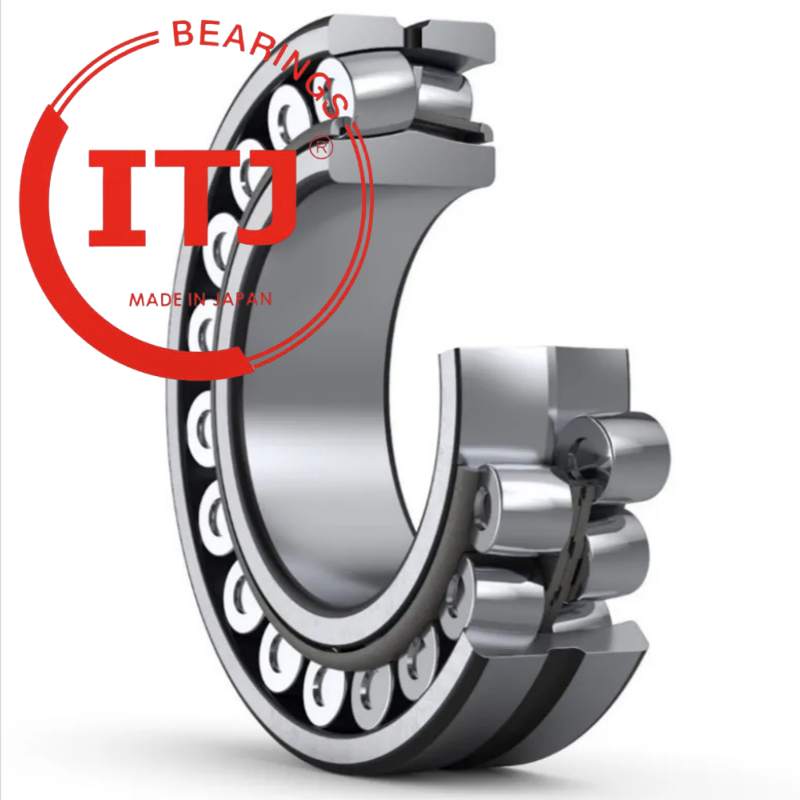

ITJ 22308EAE4
Информация о продукте
Модель подшипника
22308EAE4

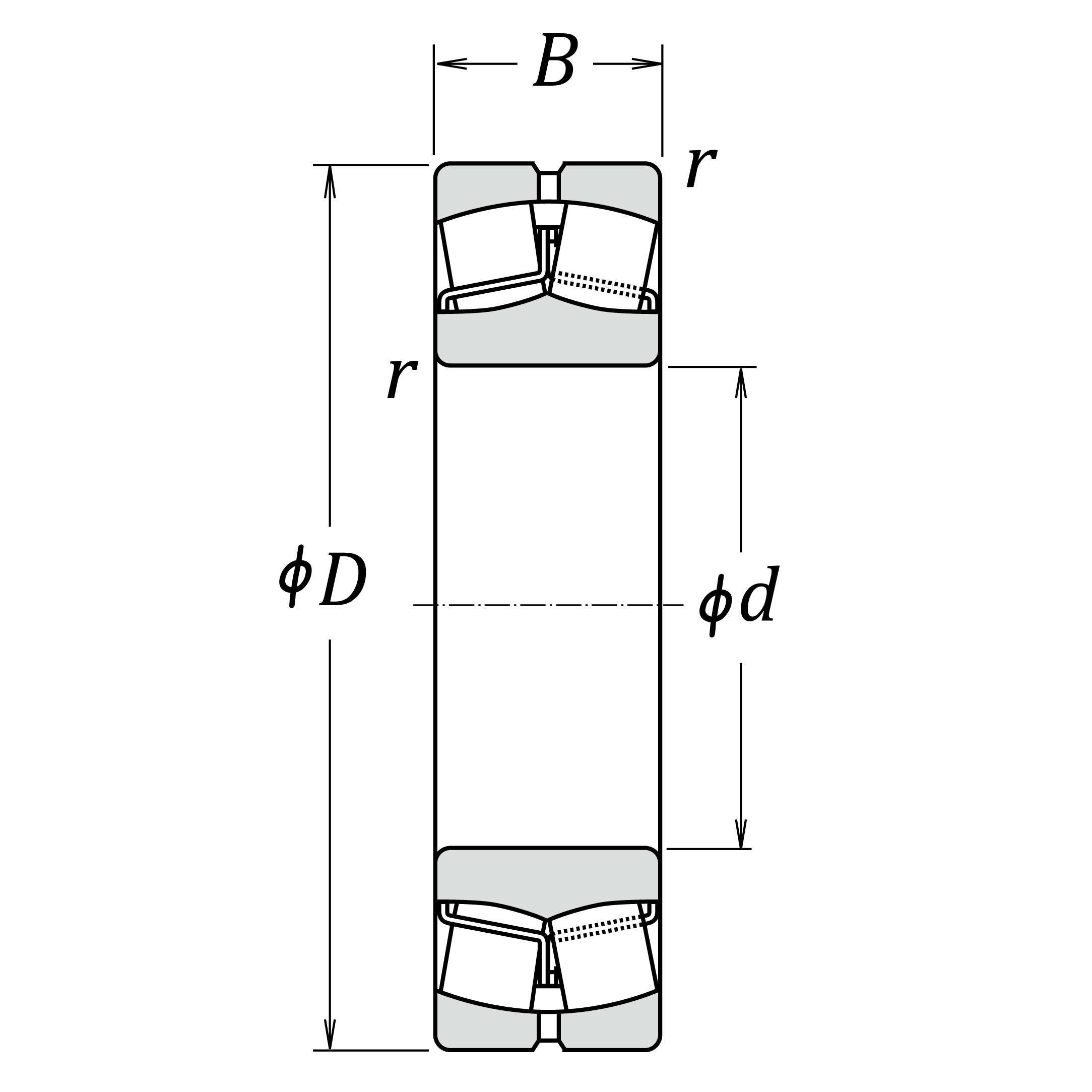

Габаритные размеры
| d | 40 | mm | Bore diameter |
| D | 90 | mm | Outside diameter |
| B | 33 | mm | Width |
| r (min.) | 1.5 | mm | Chamfer dimension |
Базовые нагрузки
| Cr | 170000 | N | Basic dynamic load rating |
| C0r | 153000 | N | Basic static load rating |
Предельные скорости
| Thermal Speed Rating (Oil-bath) | 5600 | min-1 | Oil-bath lubrication subject to conditions outlined in ISO 15312 |
| Mechanical (forced-circulation oil) | 9000 | min-1 | Properly designed and controlled forced-circulation oil lubrication |
| Grease | 5300 | min-1 | Grease lubrication |
| Oil (Oil-bath) | 6700 | min-1 | Oil-bath lubrication |

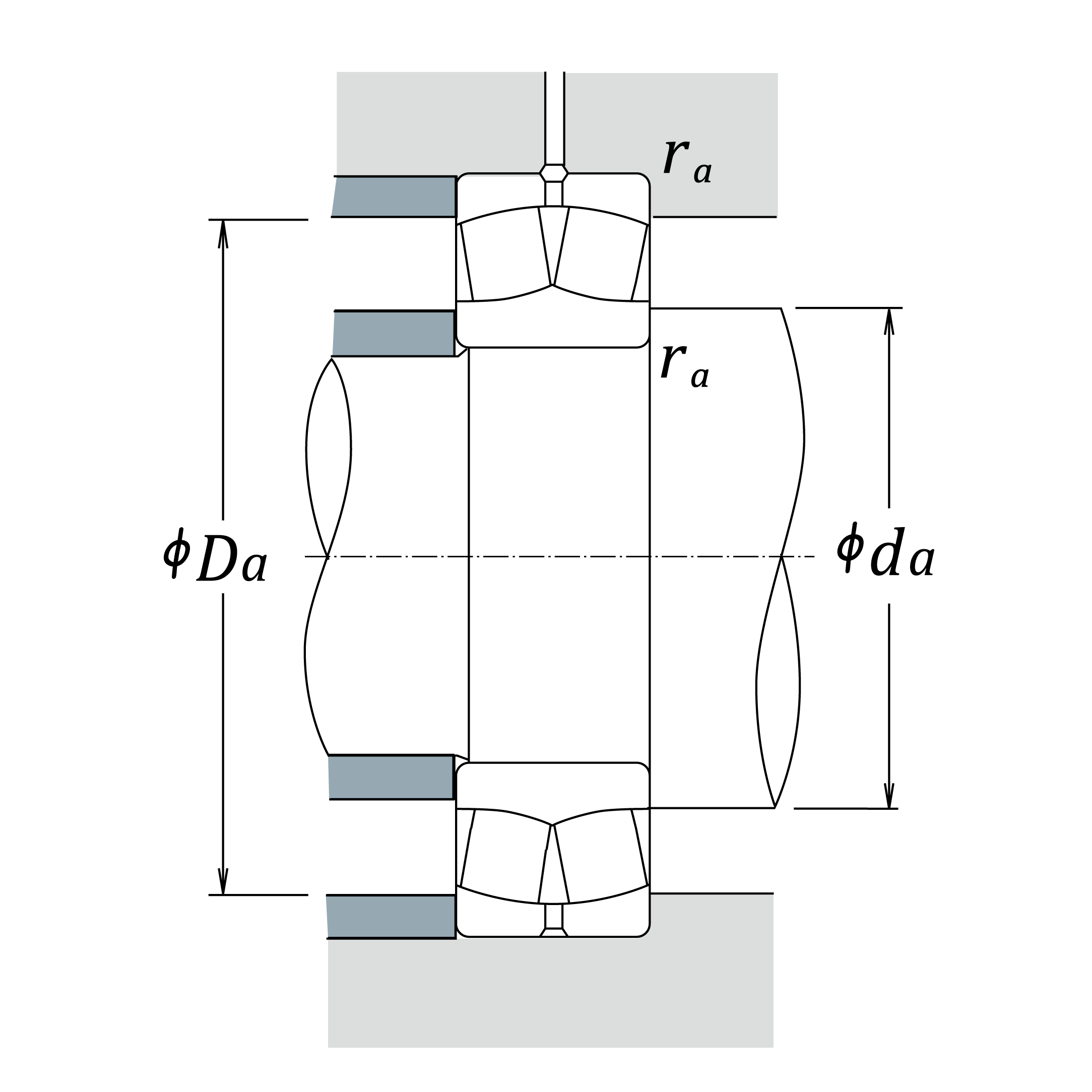

Размеры буртиков и галтелей
| da (min.) | 49 | mm | Diameter of shaft abutment |
| da (max.) | 52 | mm | Diameter of shaft abutment |
| Da (min.) | 77 | mm | Diameter of housing abutment |
| Da (max.) | 81 | mm | Diameter of housing abutment |
| ra (max.) | 1.5 | mm | Radius of shaft or housing fillet |
Расчетные коэффициенты
Масса
| (approx.) | 0.98 | kg |
