ITJ 07100SA/07196
Информация о продукте
Модель подшипника
07100SA/07196

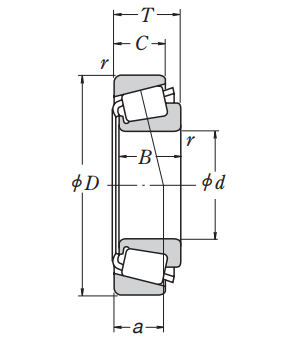

Габаритные размеры
| d | 25.4 | mm | Bore diameter |
| D | 50.005 | mm | Outside diameter |
| T | 13.495 | mm | Total width |
| B | 14.26 | mm | Width of inner ring |
| C | 9.525 | mm | Width of outer ring |
| Cup r (min.) | 1 | mm | Chamfer dimension of outer ring (Cup) |
| Cone r (min.) | 3.3 | mm | Chamfer dimension of inner ring (Cone) |
Базовые нагрузки
| Cr | 32000 | N | Basic dynamic load rating |
| C0r | 27900 | N | Basic static load rating |
Предельные скорости
| Grease | 7500 | min-1 | Grease lubrication |
| Oil (Oil-bath) | 10000 | min-1 | Oil-bath lubrication |

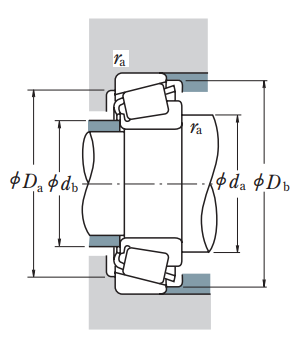

Размеры буртиков и галтелей
| da | 35 | mm | Diameter of shaft abutment |
| Da | 44.5 | mm | Diameter of housing abutment |
| db | 29.5 | mm | Diameter of shaft abutment |
| Db | 47 | mm | Diameter of housing abutment |
| ra (max.) | 3.3 | mm | Radius of shaft or housing fillet of inner ring |
| ra (max.) | 1 | mm | Radius of shaft or housing fillet of outer ring |
Расчетные коэффициенты
Масса
| CONE (approx.) | 0.082 | kg | |
| CUP (approx.) | 0.035 | kg |
