F-UCPM207/LP99
Информация о продукте
Модель подшипника
F-UCPM207D0/LP99 X GVS
Базовые нагрузки
| Cr | 19.7 | kN | Basic dynamic load rating |
| C0r | 15.3 | kN | Basic static load rating |
Другие
Included products
| Bearing | F-UC207D1/LP99 | Bearing | |
| Housing | PM207 | Housing |

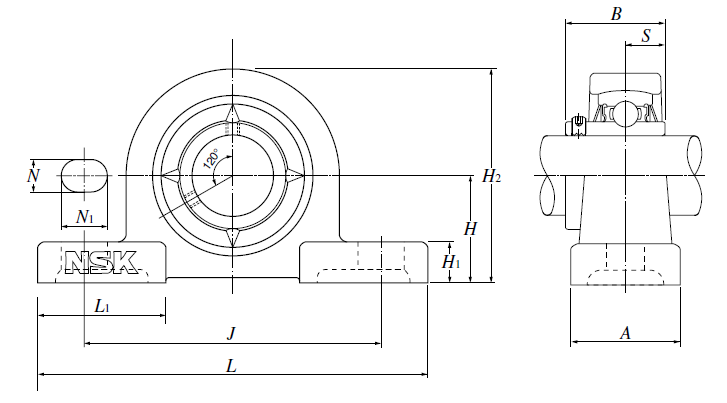

Nominal Dimensions
| d | 35 | mm | Bore diameter |
| N1 | 20 | mm | Length of attachment bolt hole |
| L | 161 | mm | Overall length |
| H | 47.6 | mm | Height of spherical seat centre |
| J | 127 | mm | Distance between attachment bolts |
| N | 17 | mm | Diameter of attachment bolt hole |
| A | 38 | mm | Base width |
| H1 | 14 | mm | Distance between bottoms of piloting grooves |
| B | 42.9 | mm | Width of inner ring |
| S | 17.5 | mm | Distance from Opposite side face of locking device to raceway centre |
| H2 | 92 | mm | Overall height |
Mounting information
| G | M14 | Bolt size |
Масса
| mass | 1.2 | kg | Mass approx. |
