CS205LLU
Информация о продукте
Модель подшипника
CS205LLU X AS3S
Базовые нагрузки
| Cr | 14 | kN | Basic dynamic load rating |
| C0r | 7.85 | kN | Basic static load rating |
Другие
Included products
| Bearing | CS205LLU | Bearing |

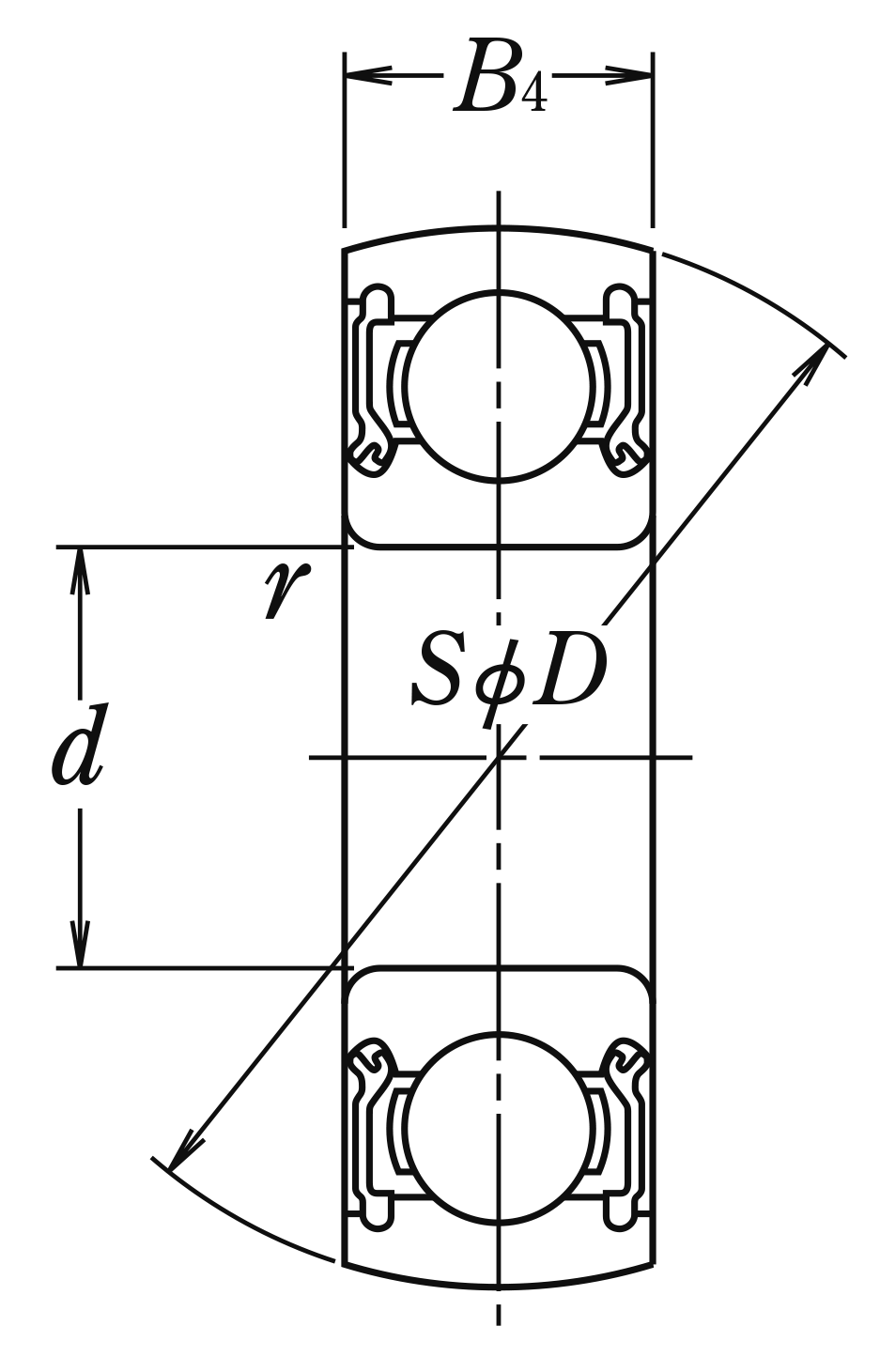

Nominal Dimensions
| d | 25 | mm | Bore diameter |
| D | 52 | mm | Outside diameter |
| B,B4 | 15 | mm | Width of inner ring |
| r(min.) | 1 | mm | Chamfer dimension |
Масса
| Mass approx. | 0.13 | kg | Mass approx. |
