C-UCFC205D1

C-UCFC205D1 X AS3S

Модель подшипника

C_r	14	kN	Basic dynamic load rating
C_0r	7.85	kN	Basic static load rating

Bearing	UC205D1		Bearing
Housing	FC205D1		Housing

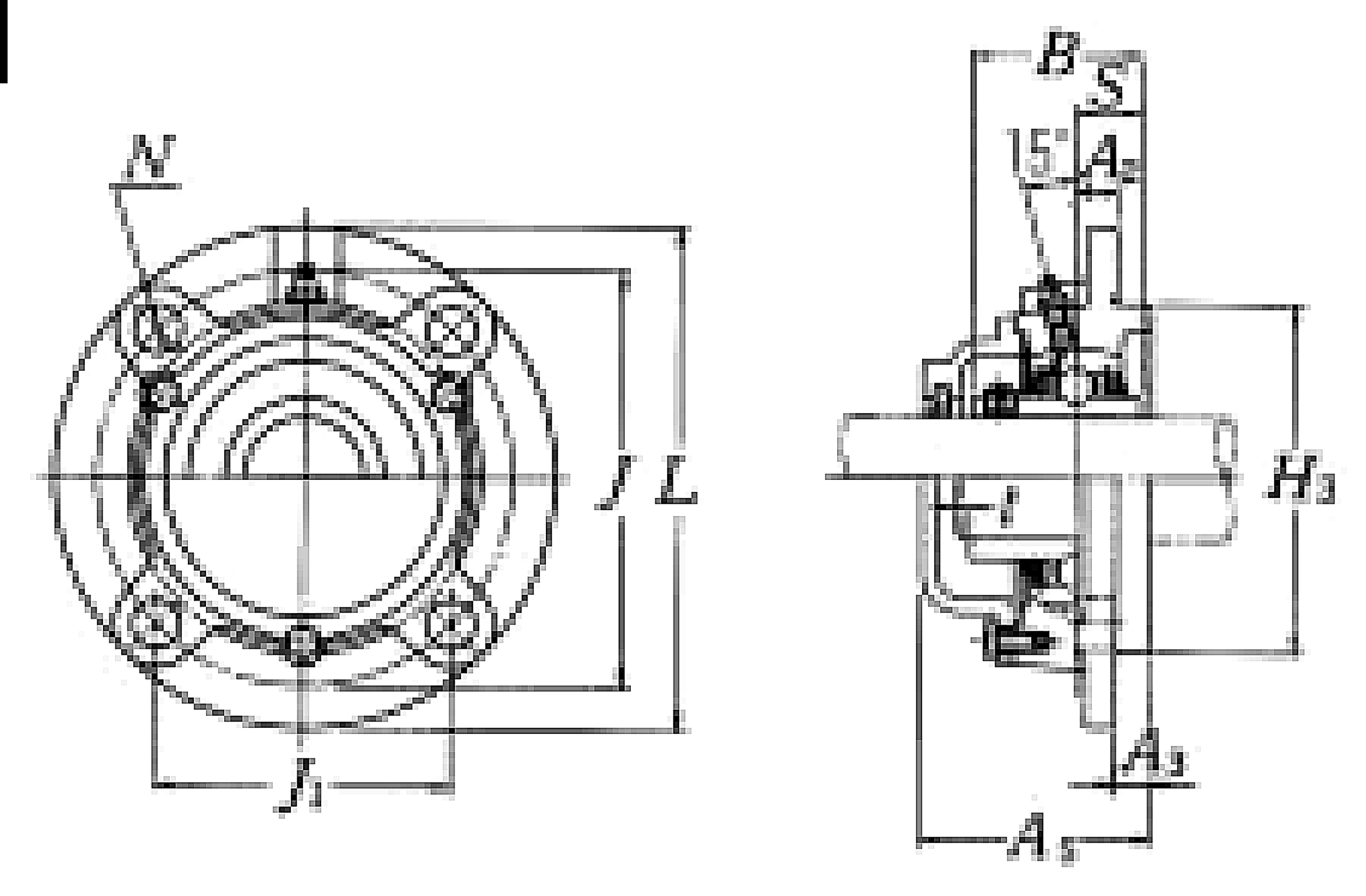

d	25	mm	Bore diameter
L,H	115	mm	Overall length
H3	70	mm	Outer diameter of Spigot Joint
J	90	mm	Pitch diameter of attachment bolts
J1	63.6	mm	Distance between attachment bolts
N	12	mm	Diameter of attachment bolt hole
A3	6	mm	Height of of Spigot Joint
A2	10	mm	Flange width
A1	22	mm	Flange width
A5	51	mm	Width including end cover
B,B1,B2	34.1	mm	Width of inner ring
t	2	mm	Clearance
S	14.3	mm	Distance from Opposite side face of locking device to raceway centre

M10

Bolt size

mass

1.2

Mass approx.
