ASPF204
Информация о продукте
Модель подшипника
ASPF204 X AS3S
Базовые нагрузки
| Cr | 12.8 | kN | Basic dynamic load rating |
| C0r | 6.65 | kN | Basic static load rating |
Другие
Included products
| Bearing | AS204 | Bearing | |
| Housing | PF204 | Housing |

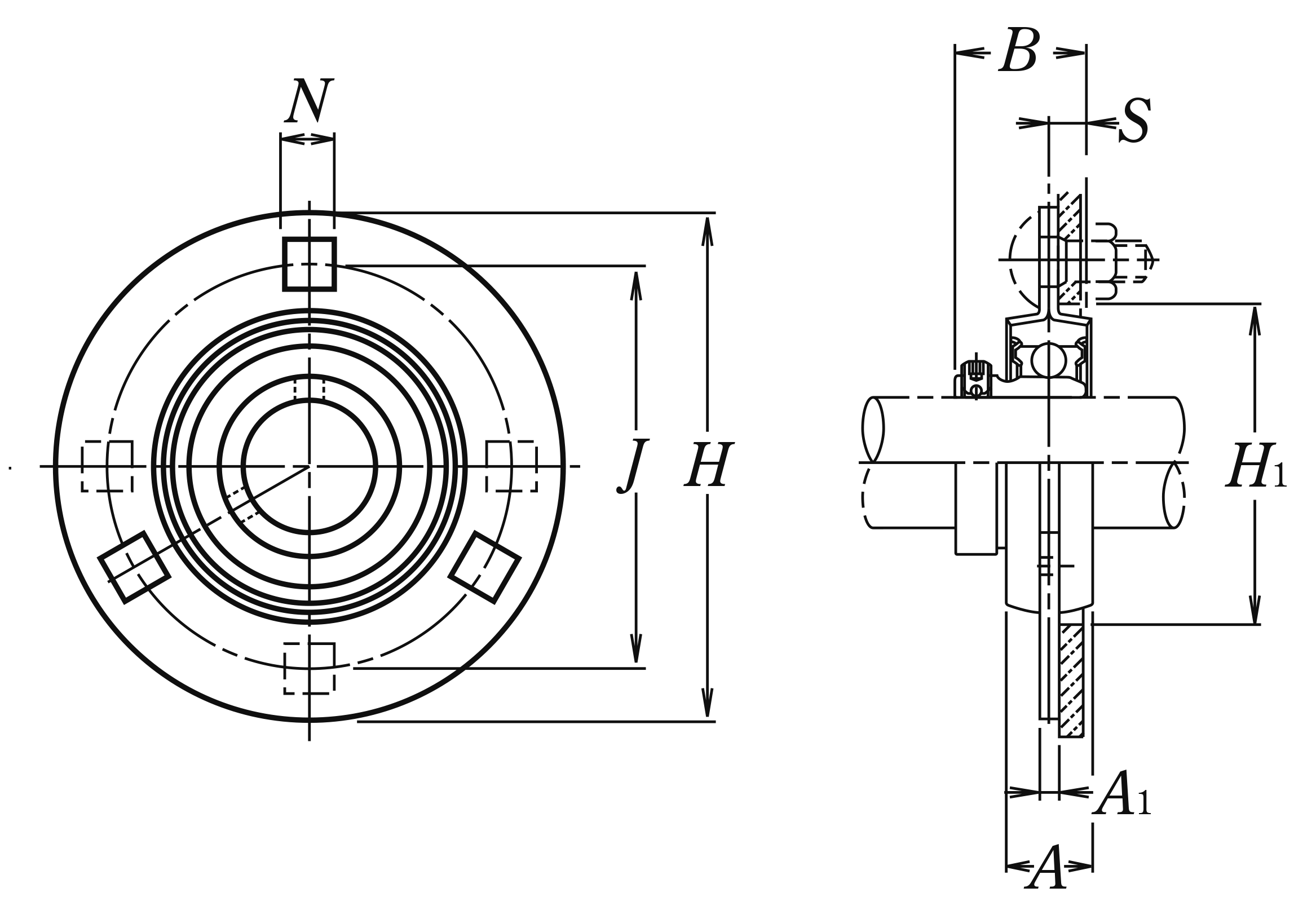

Nominal Dimensions
| d | 20 | mm | Bore diameter |
| L,H | 90 | mm | Overall length |
| J | 71.5 | mm | Pitch diameter of attachment bolts |
| N | 9 | mm | Diameter of attachment bolt hole |
| A1 | 4 | mm | Flange width |
| A | 16 | mm | Base width |
| B,B1,B2 | 25 | mm | Width of inner ring |
| H1 | 56 | mm | Abutment diameter |
| S | 7 | mm | Distance from Opposite side face of locking device to raceway centre |
Mounting information
| G | M8 | Bolt size |
Масса
| mass | 0.2 | kg | Mass approx. |
