AELRPF205

AELRPF205
  • AELRPF205 X AS3S
    • купить

    Информация о продукте

    Модель подшипника

  • AELRPF205 X AS3S
    •

    Базовые нагрузки

    Cr 14 kN Basic dynamic load rating
    C0r 7.85 kN Basic static load rating

    Другие

    Included products

    Bearing AEL205 Bearing
    Housing PF206 Housing
    Rubber ring R205 Rubber ring

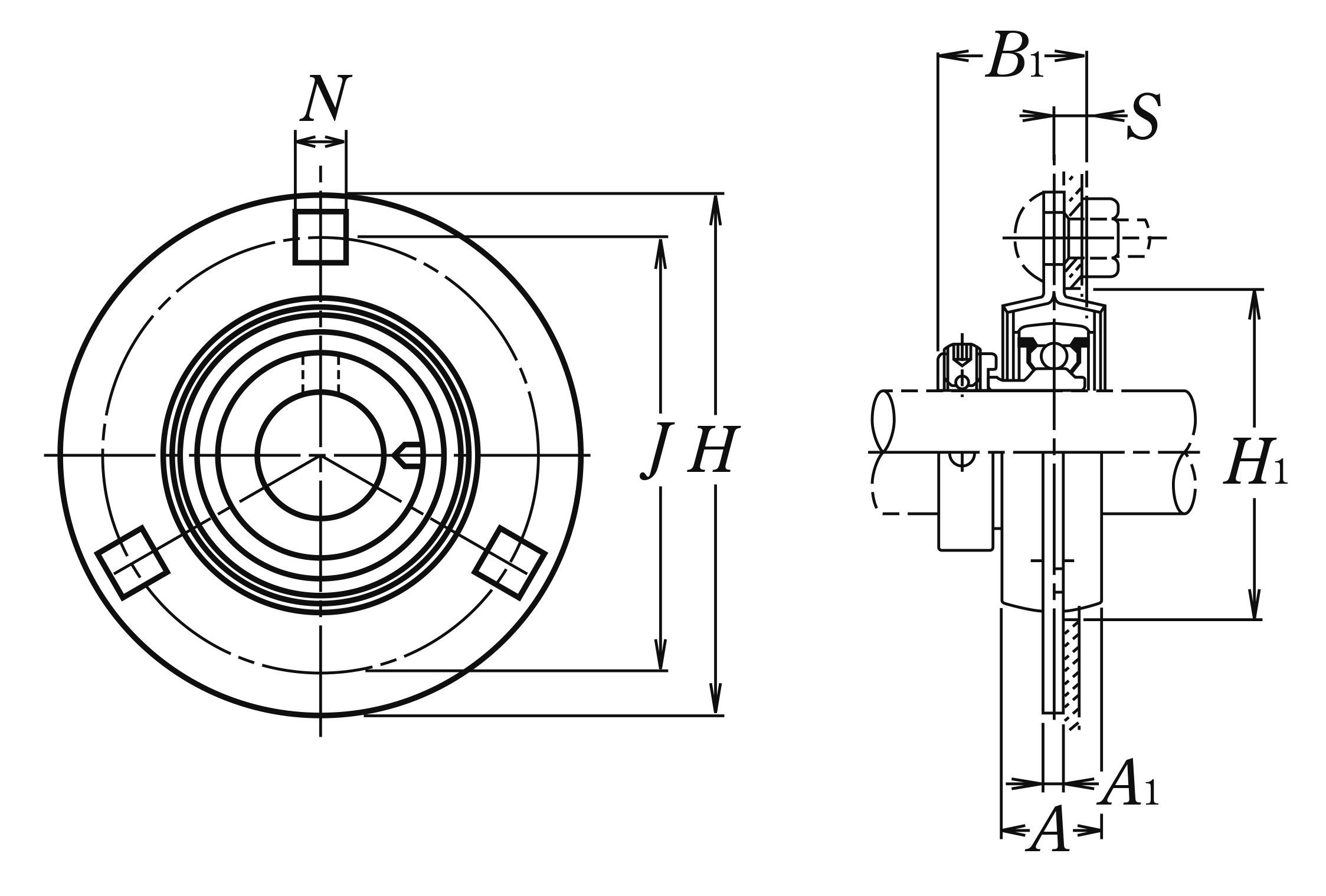

    Nominal Dimensions

    d 25 mm Bore diameter
    L,H 113 mm Overall length
    J 90.5 mm Pitch diameter of attachment bolts
    N 11 mm Diameter of attachment bolt hole
    A1 5.2 mm Flange width
    A 18 mm Base width
    B,B1,B2 31 mm Width of inner ring
    H1 71 mm Abutment diameter
    S 7.5 mm Distance from Opposite side face of locking device to raceway centre

    Mounting information

    G M10 Bolt size

    Permissible housing load

    CR 1.3 kN Radial
    CA 0.2 kN Axial

    Масса

    mass 0.3 kg Mass approx.
