AELPF201
Информация о продукте
Модель подшипника
AELPF201 X AS3S
Базовые нагрузки
| Cr | 9.6 | kN | Basic dynamic load rating |
| C0r | 4.6 | kN | Basic static load rating |
Другие
Included products
| Bearing | AEL201 | Bearing | |
| Housing | PF203 | Housing |

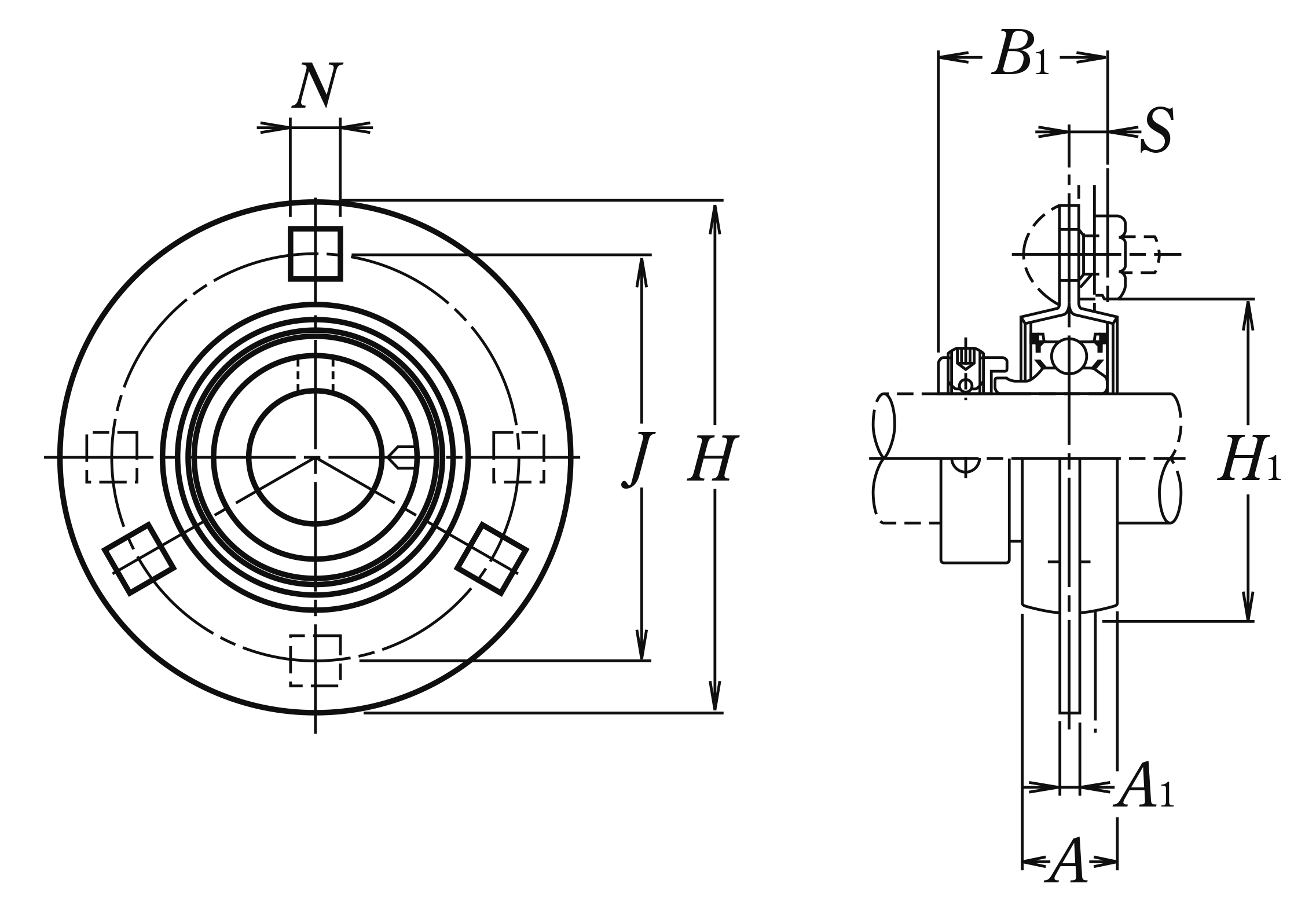

Nominal Dimensions
| d | 12 | mm | Bore diameter |
| L,H | 81 | mm | Overall length |
| J | 63.5 | mm | Pitch diameter of attachment bolts |
| N | 7.1 | mm | Diameter of attachment bolt hole |
| A1 | 4 | mm | Flange width |
| A | 14 | mm | Base width |
| B,B1,B2 | 28.6 | mm | Width of inner ring |
| H1 | 49 | mm | Abutment diameter |
| S | 6.5 | mm | Distance from Opposite side face of locking device to raceway centre |
Mounting information
| G | M 6 | Bolt size |
Permissible housing load
| CR | 2.7 | kN | Radial |
Масса
| mass | 0.2 | kg | Mass approx. |
