105BTR10H

105BTR10H

105BTR10HMYDBELP4A

105BTR10HTYNDBELP4A

105BTR10HMYDBLP4A

105BTR10HTYNDBLP4A

Информация о продукте

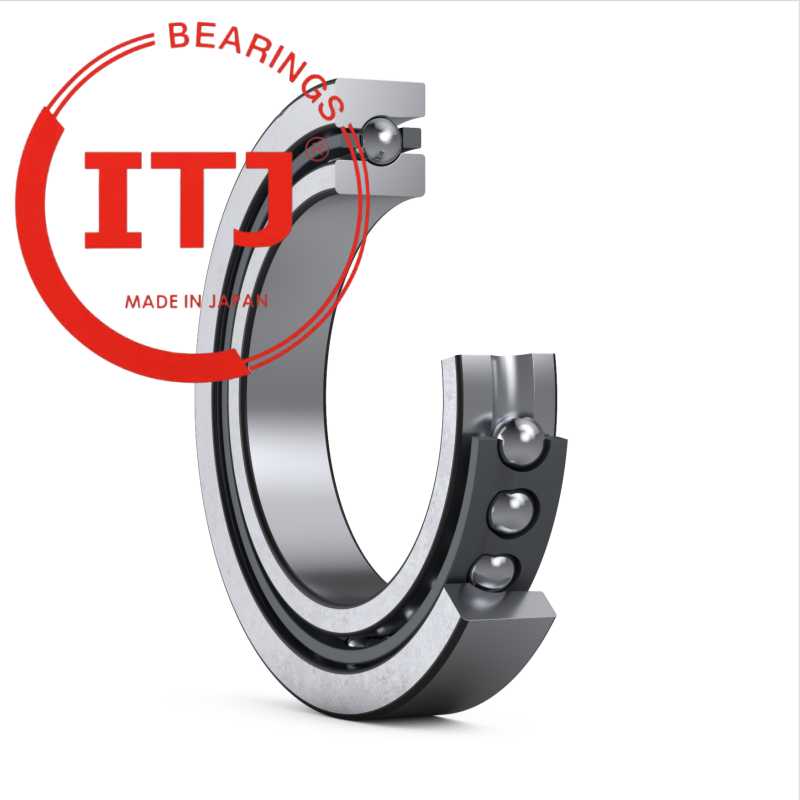

Модель подшипника

105BTR10H

Габаритные размеры

	BTR: 40°		Bearing Type
d	105	mm	Bore diameter
D	160	mm	Outside diameter
2B	49.5	mm	Assembled Width
r(min.)	2	mm	Chamfer Dimension
r1(min.)	1	mm	Chamfer Dimension

Базовые нагрузки

C_a	58.5	kN	Basic Dynamic Load Rating
C_0a	125	kN	Basic Static Load Rating

Предельные скорости

Grease	5700	min^-1	Limiting Speed (EL-Preload)
Oil (Oil-air)	7200	min^-1	Limiting Speed (EL-Preload)
Grease	4900	min^-1	Limiting Speed (L-Preload)
Oil (Oil-air)	6200	min^-1	Limiting Speed (L-Preload)

Размеры буртиков и галтелей

da(min.)	115	mm	Diameter of Shaft Abutment
Db(max.)	154	mm	Diameter of Housing Abutment
ra(max.)	2	mm	Radius of Shaft or Housing Fillet
rb(max.)	1	mm	Radius of Shaft or Housing Fillet

Расчетные коэффициенты

Performance

Pa

65.5

kN

Permissible Axial Load

Preload,Rigidity(DB and DF arrangement)

	Preload	Axial Rigidity	Measured axial clearance
EL	645N	556N/μm	-5μm
L	3640N	1005N/μm	-20μm

Масса

1.62

kg

Mass(approx.)
